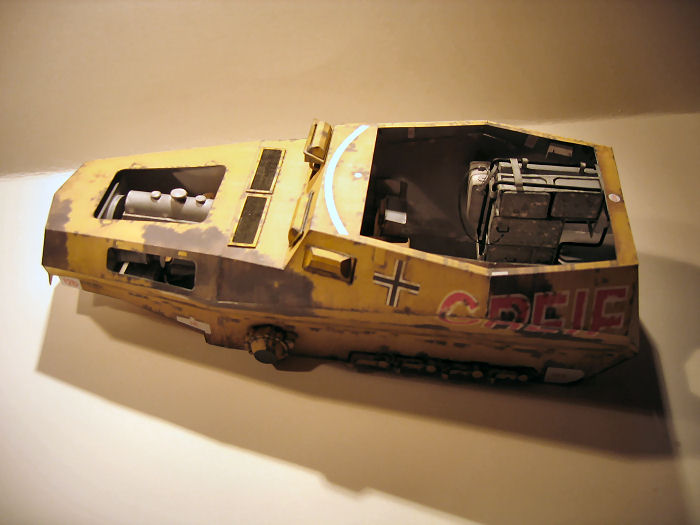

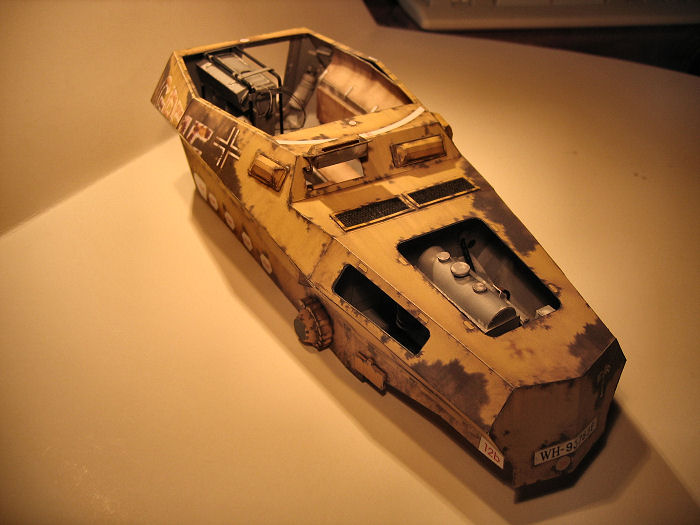

The outside skin is in place

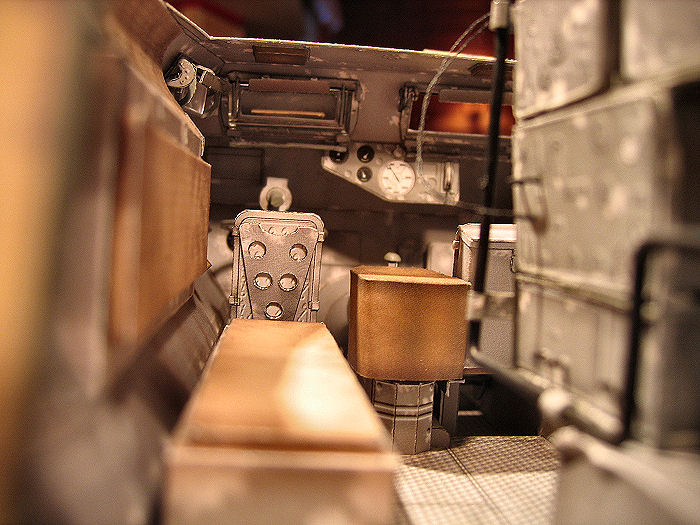

View in the backdoor

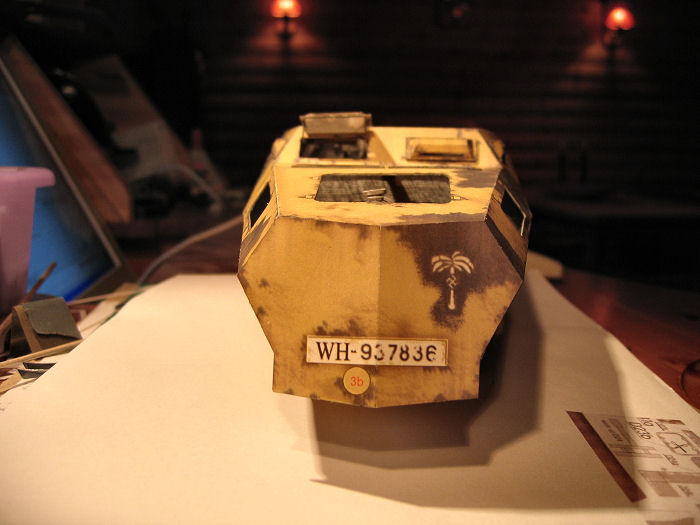

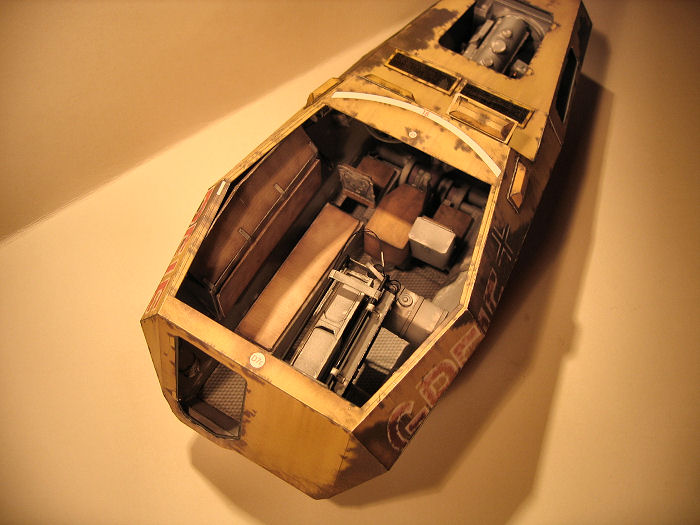

View from rear end

Closeup front

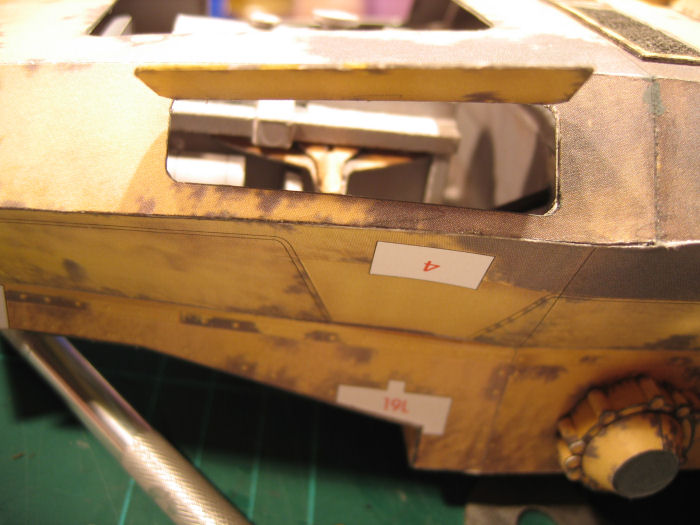

Left side

Rear Overview

Front

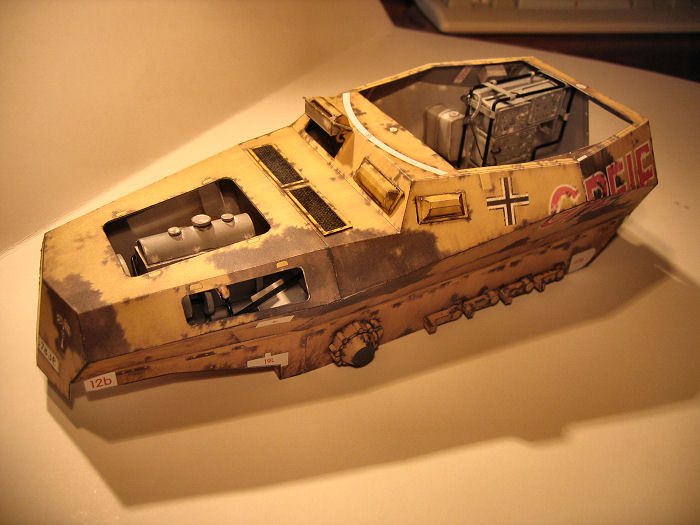

Overview

Overview

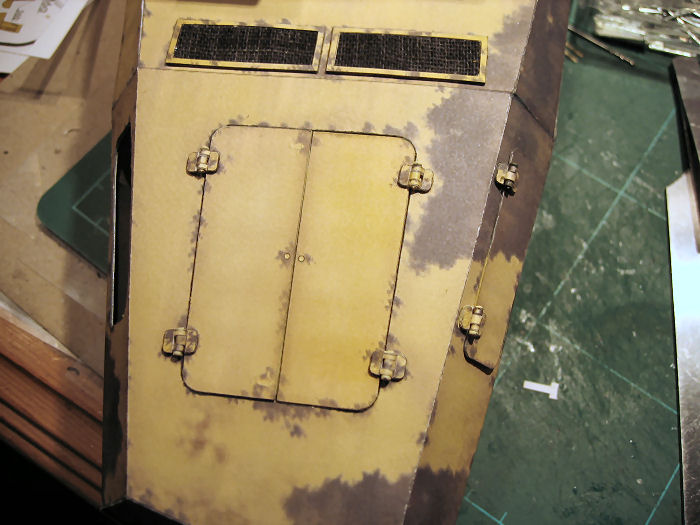

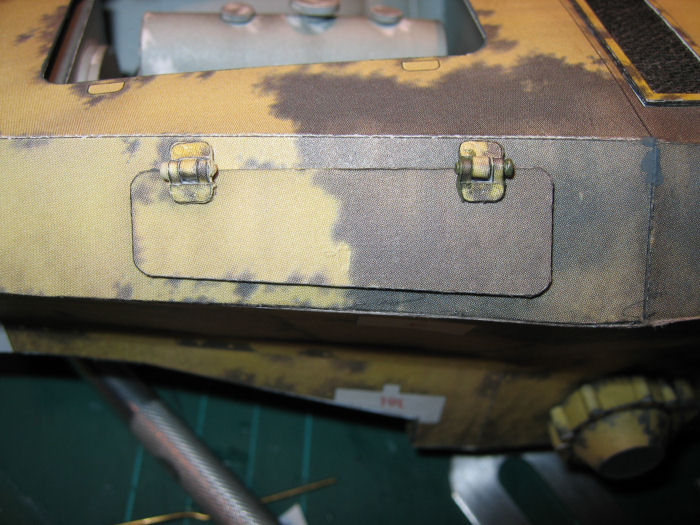

Hatches

Right side closed

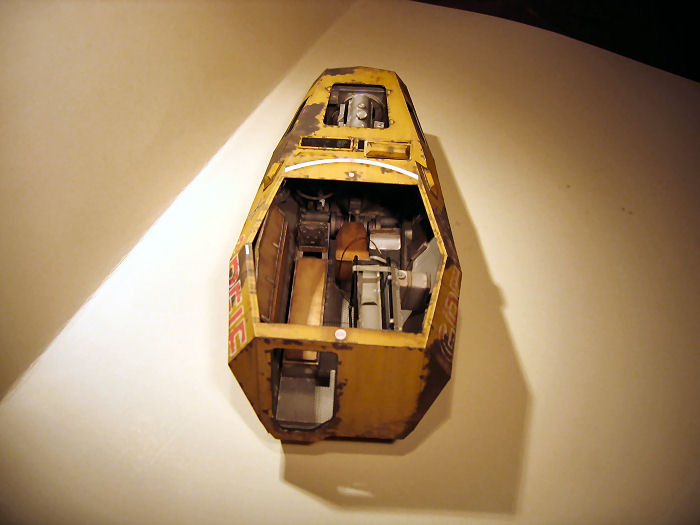

Right side open

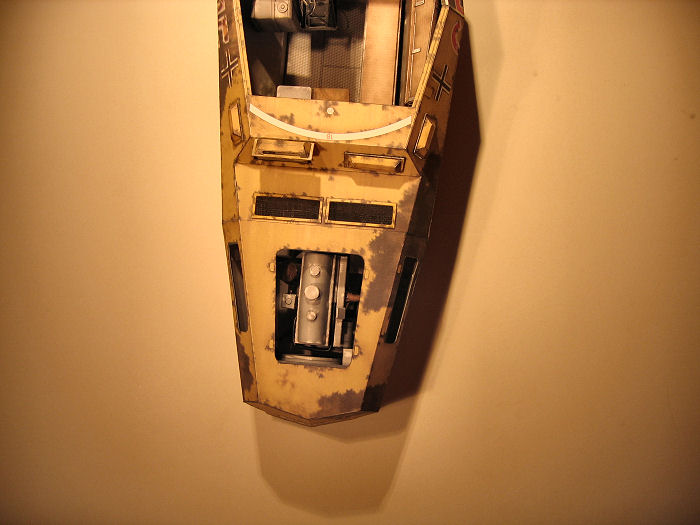

Hood closed

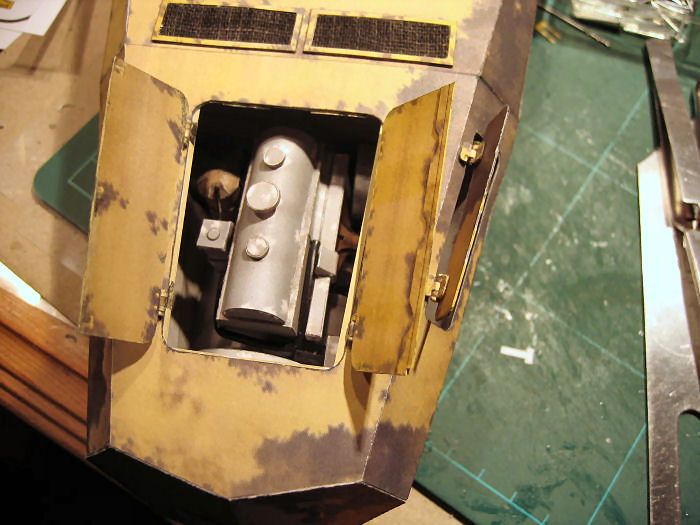

Hood open

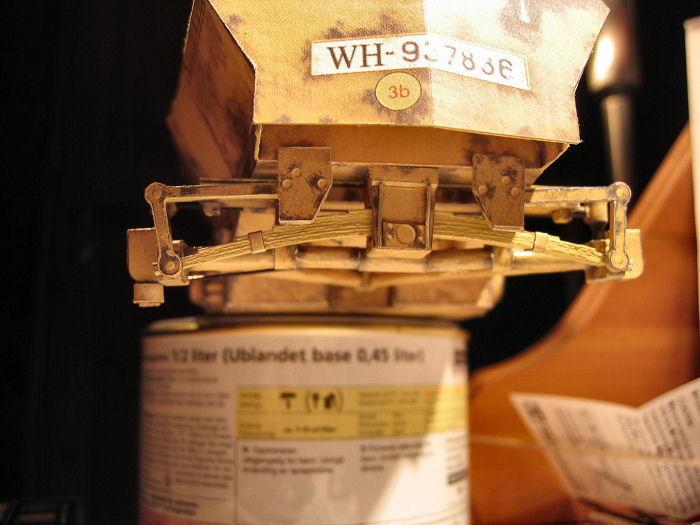

The front axel.

The front axel is kind of a puzzle :) There are a lot of parts going into this construction,as you can see out of the drawings.

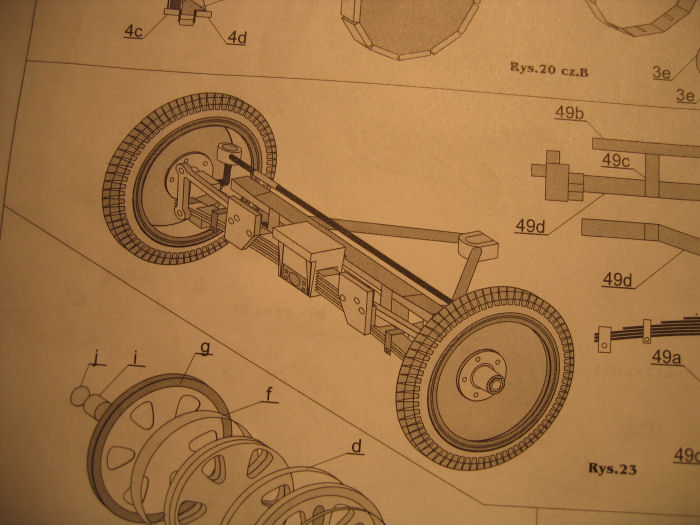

Overview drawing

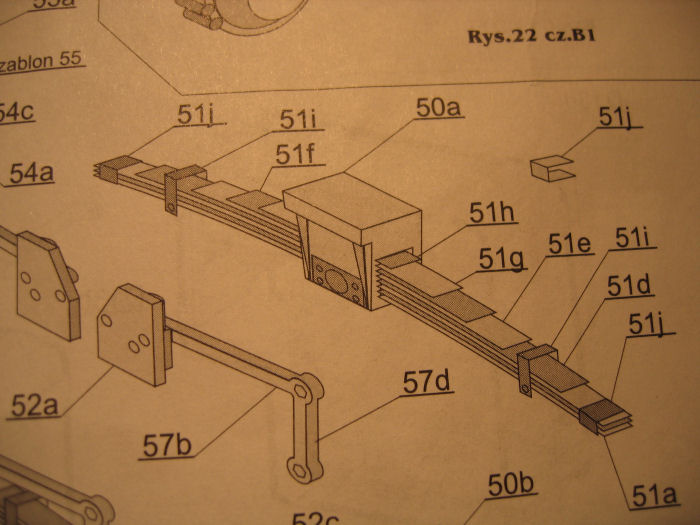

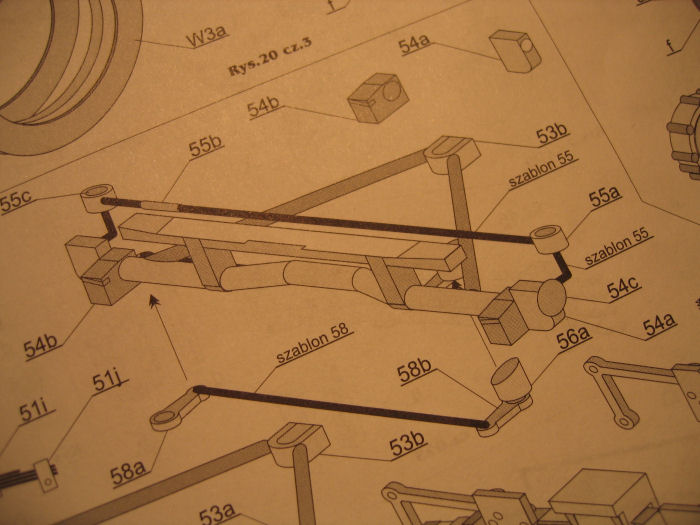

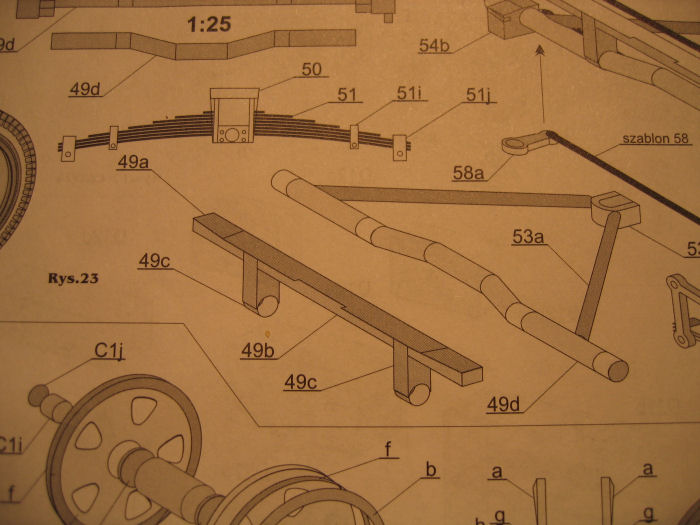

Drawing of the leafspring

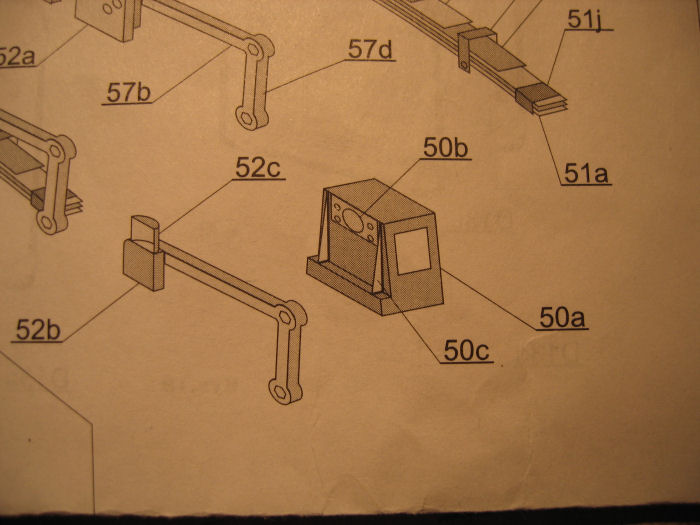

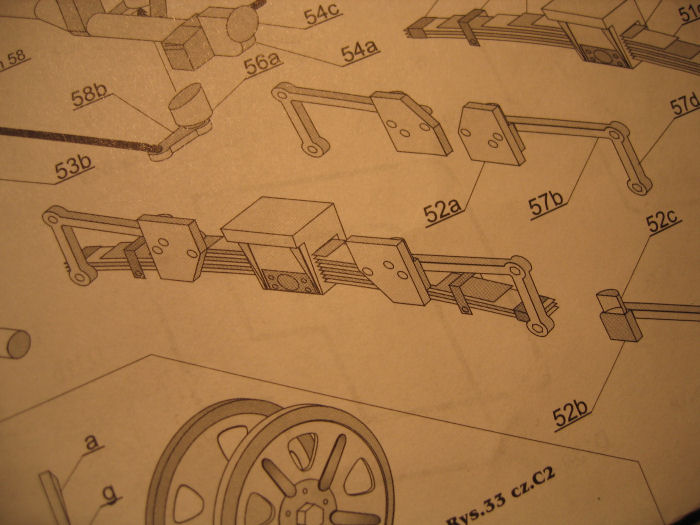

Drawing of the springarms

Steering

The connector

The center connection

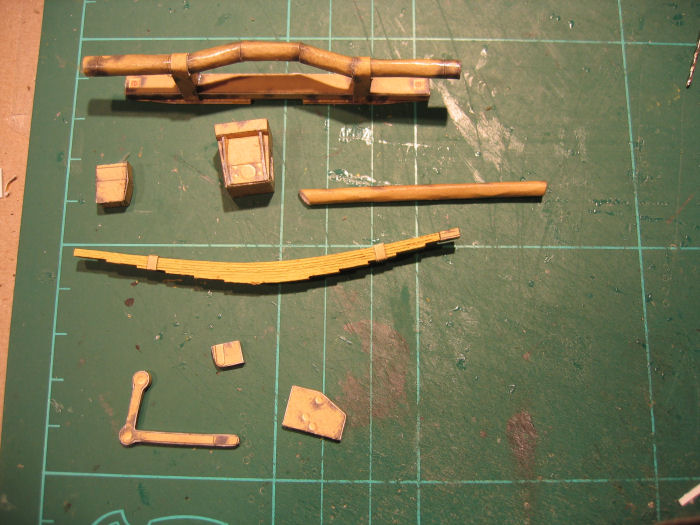

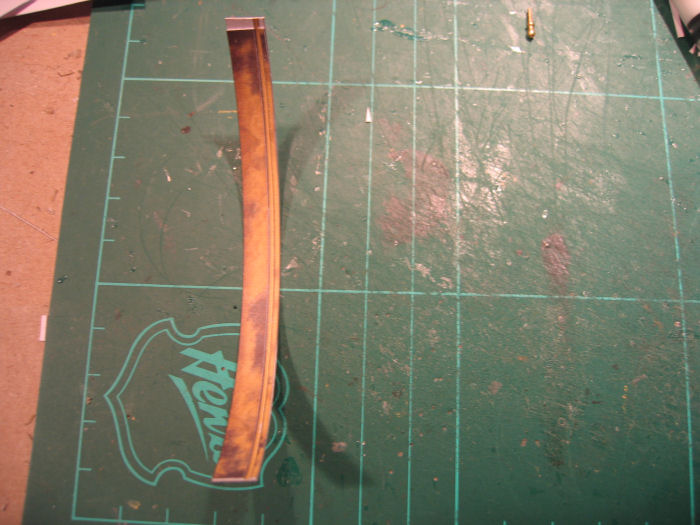

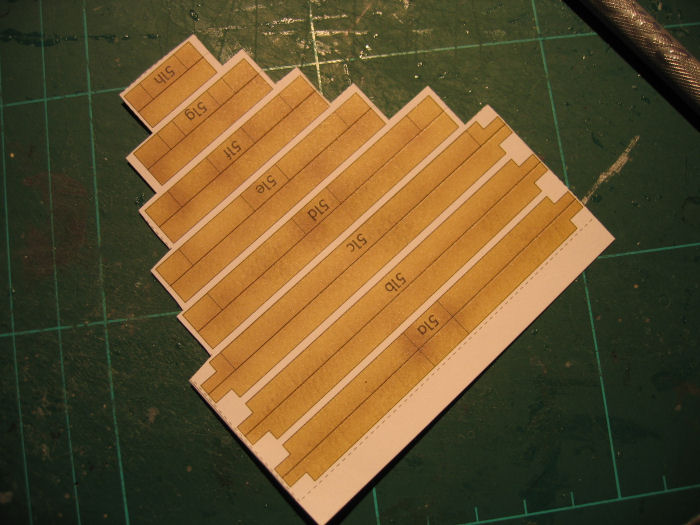

Parts for the leafspring

Parts are ready to be mounted

Right side

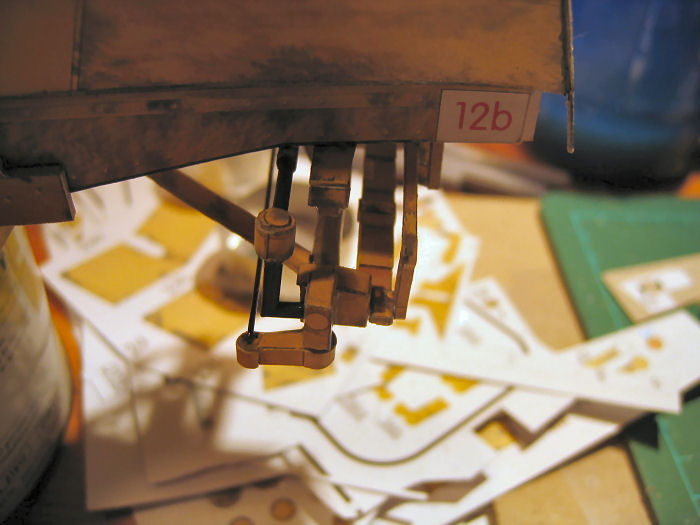

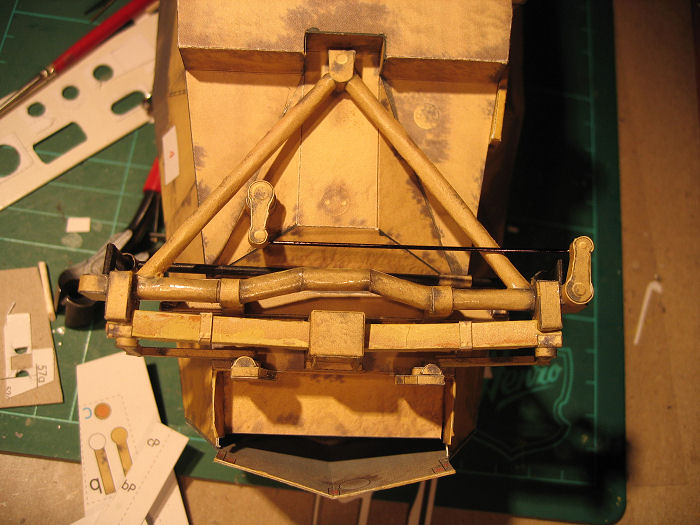

From underneath

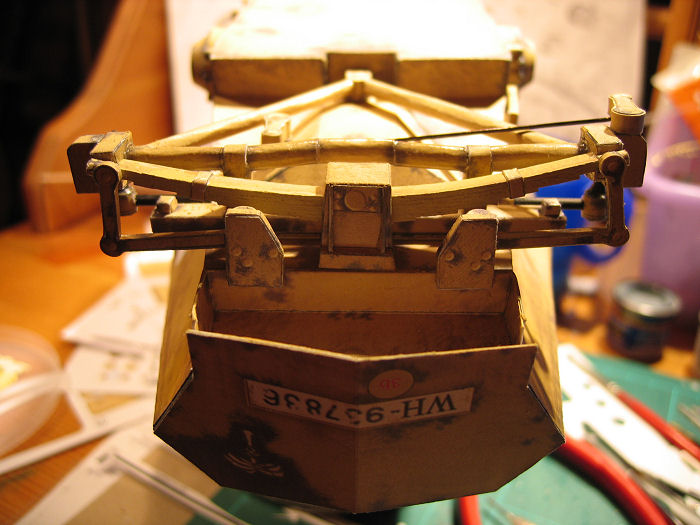

Closeup

Closeup

The two front wheels.

There was a lot of parts going into the building of the wheels.The tyrepattern was also to be made out of 3 layers.

The drawing of the wheels

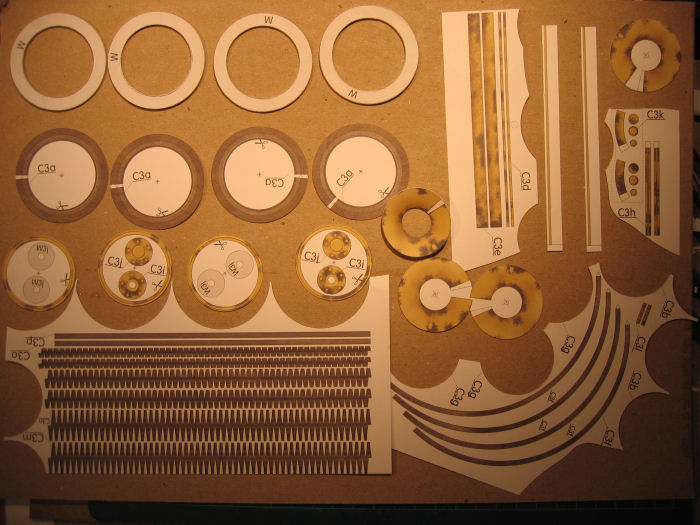

Parts to be used

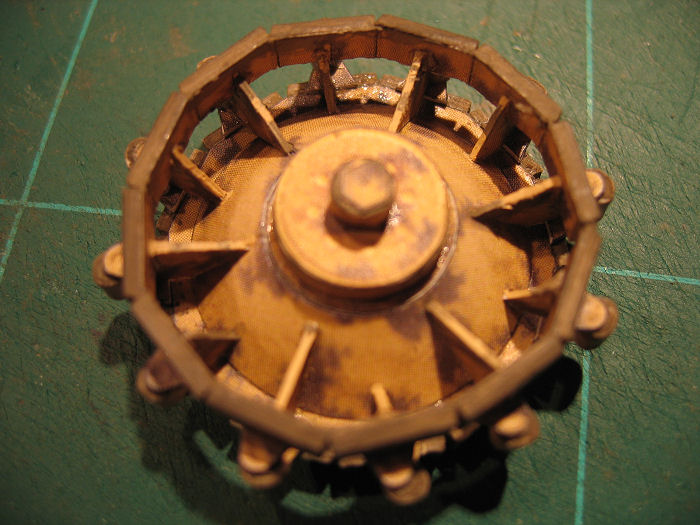

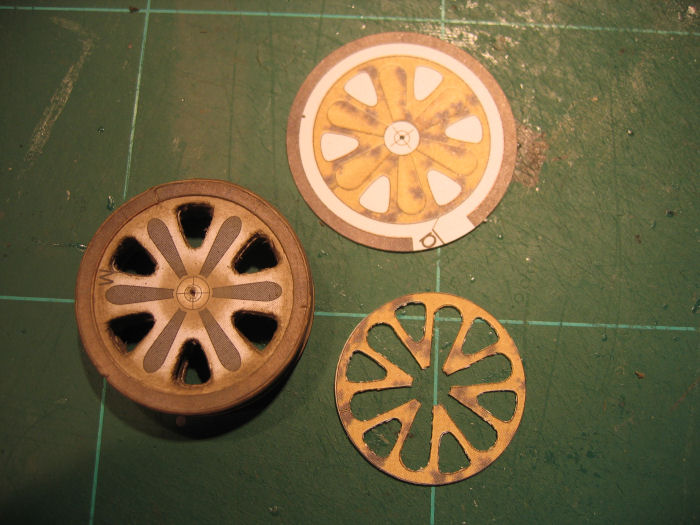

Inner structure

The coned rim

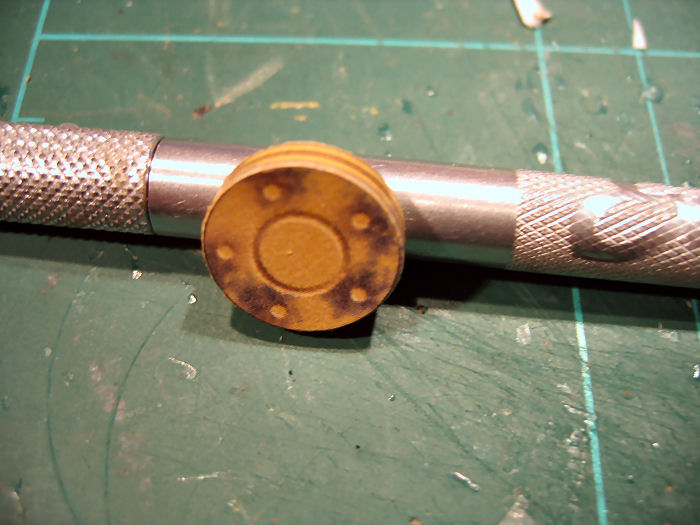

Parts for the center hub

Hub done and painted

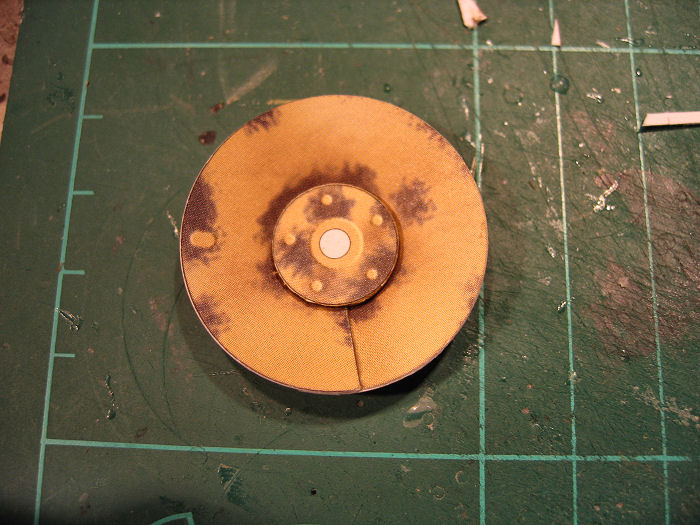

Inserted into the cone

Parts for the outer part of the rim

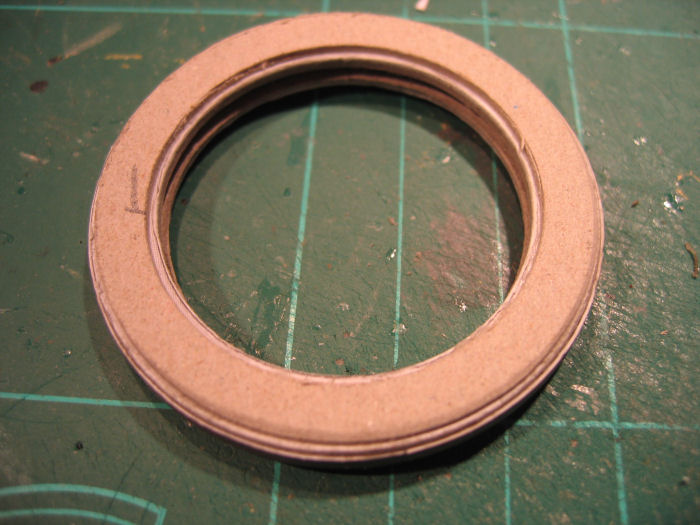

Glued together

And shaped

Putted in place

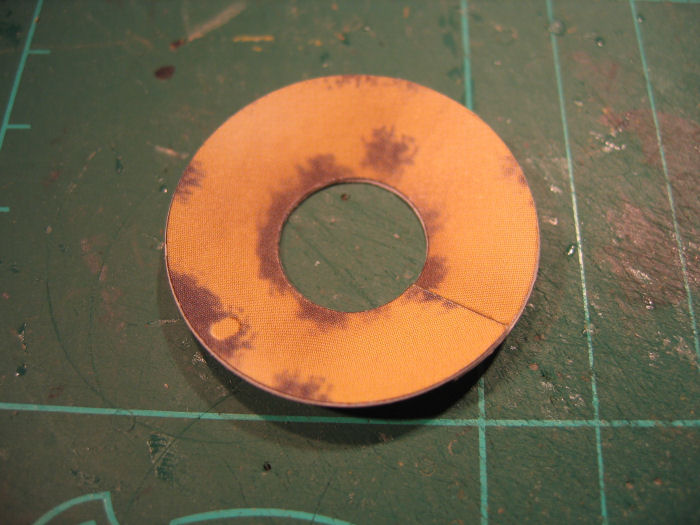

Part for the tyreside

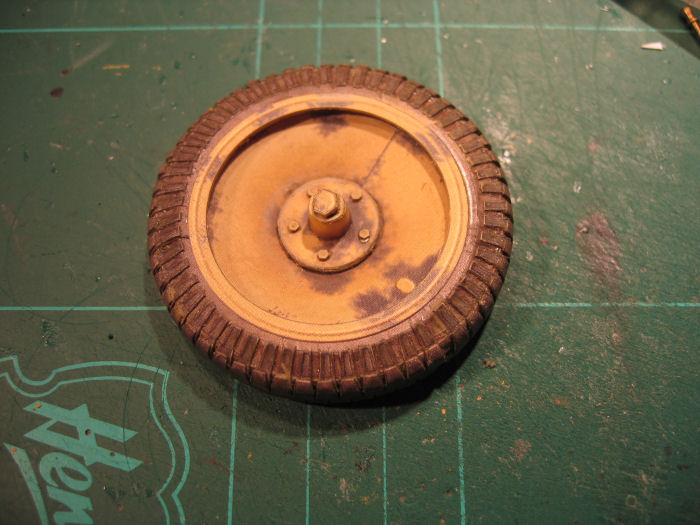

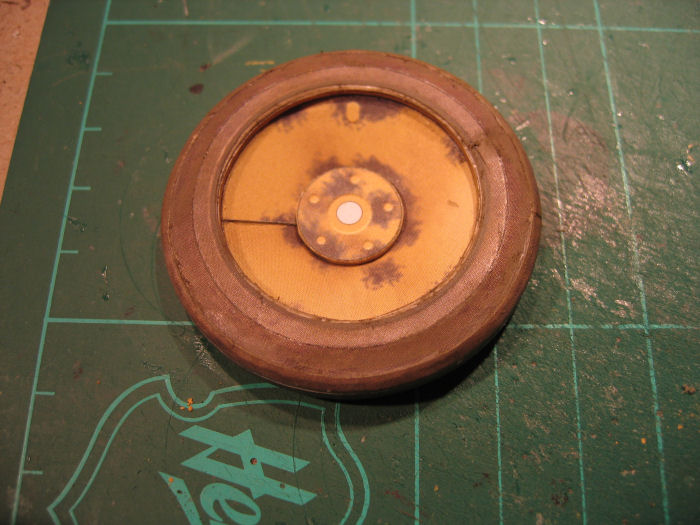

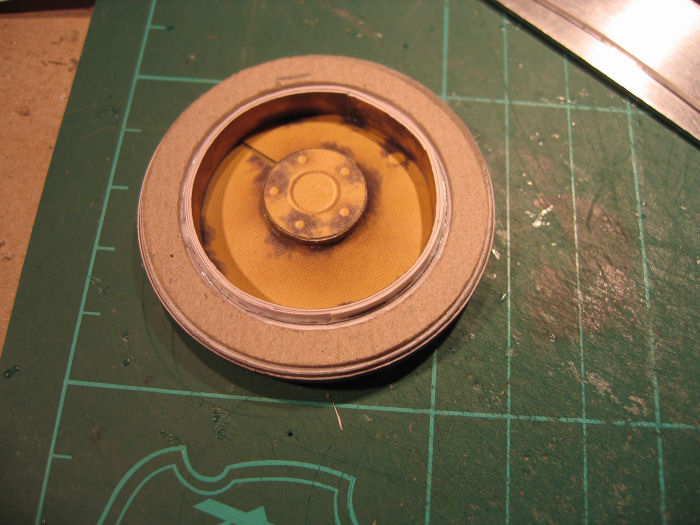

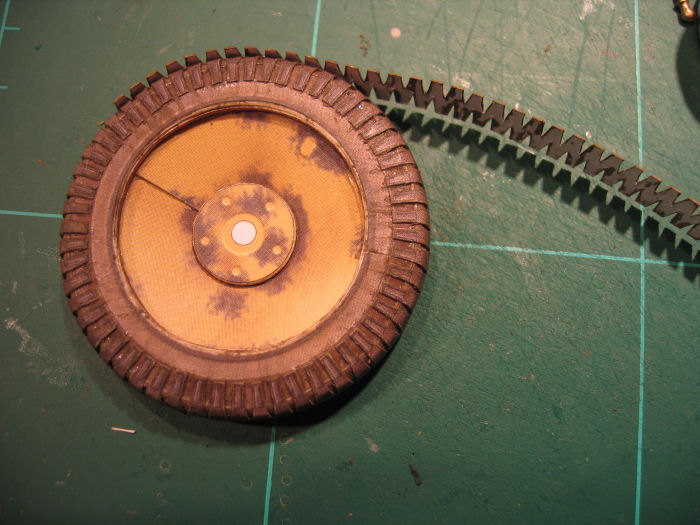

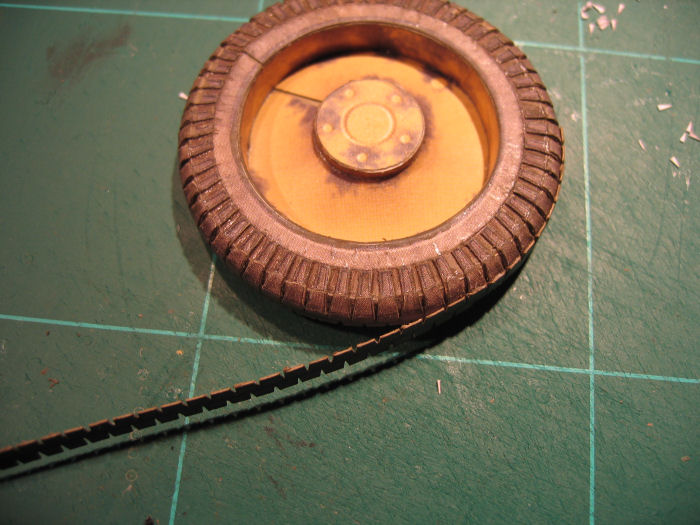

Tyre is almost finished

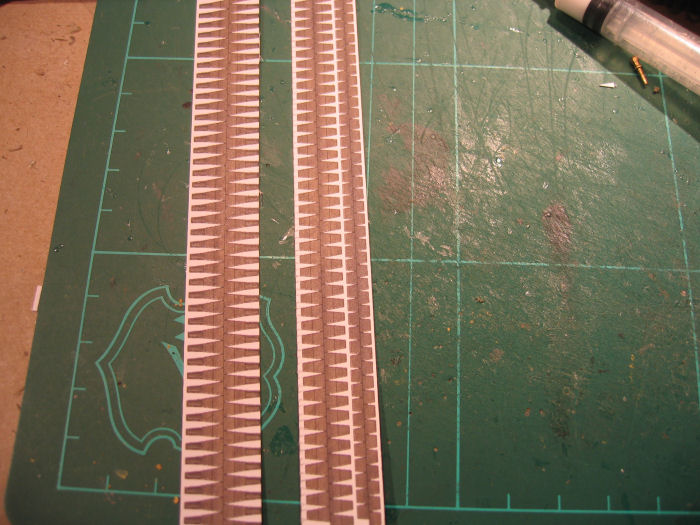

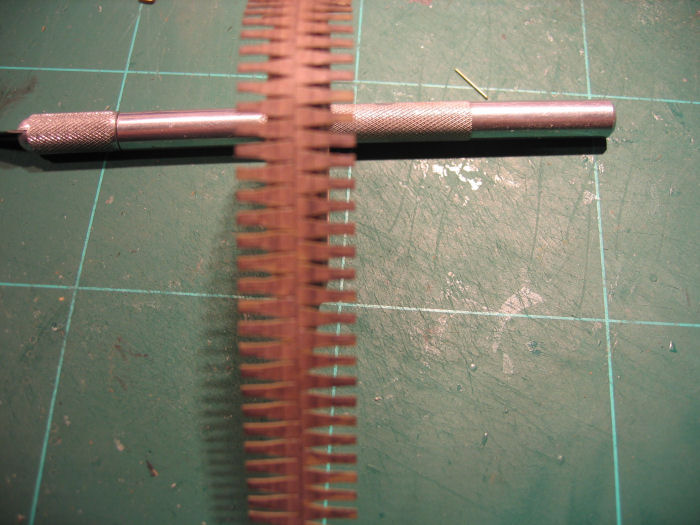

The parts to make the pattern

Backside

Frontside

The first layer to make the pattern

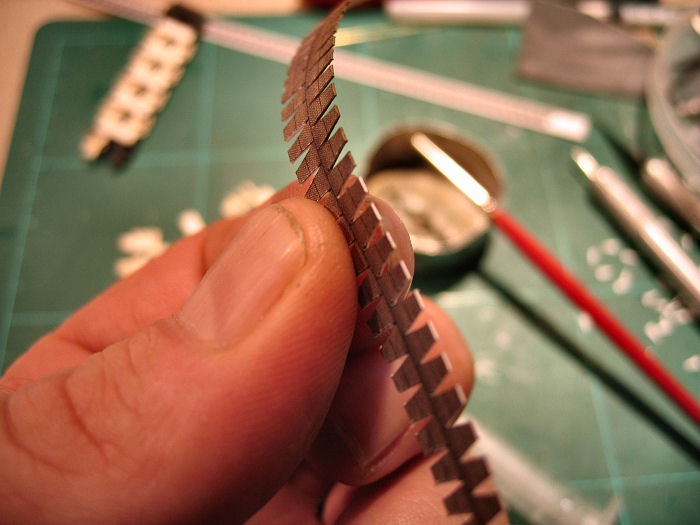

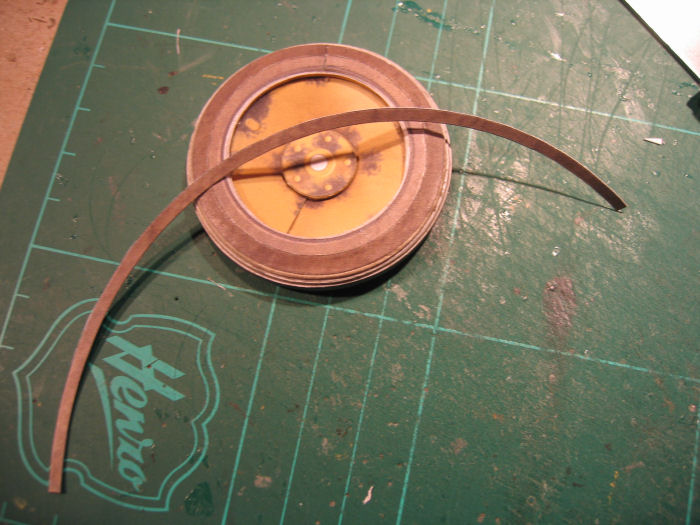

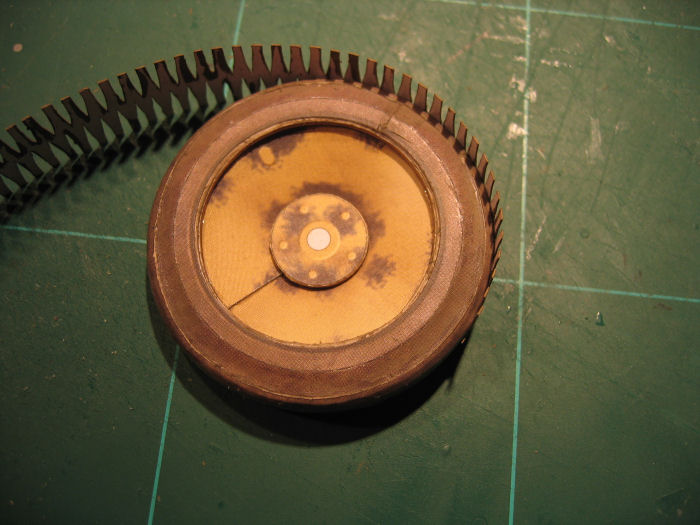

The strip was glued around the wheel

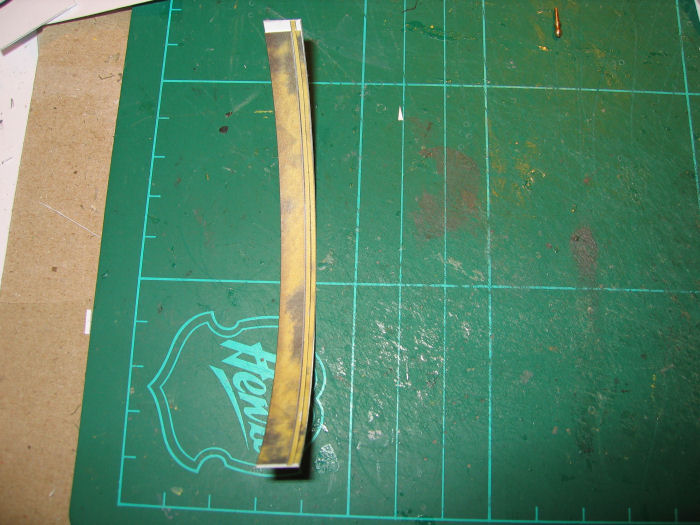

Each of the edges was bent down and glued

The second layer ready to be edgepainted

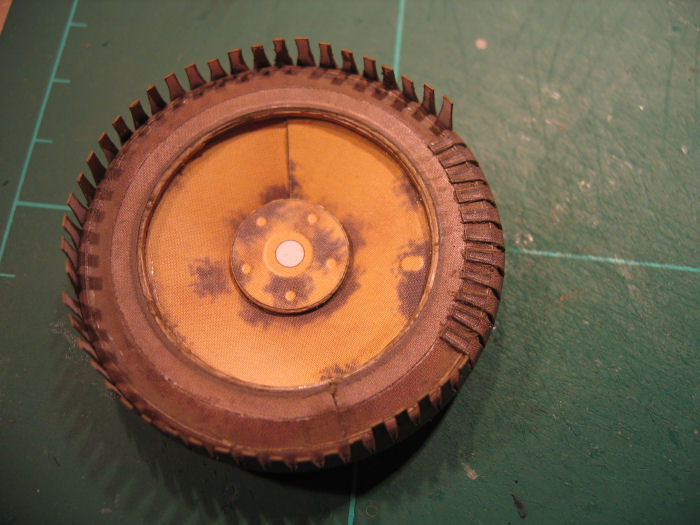

Second layer on it's way around

Third layer,same procedure

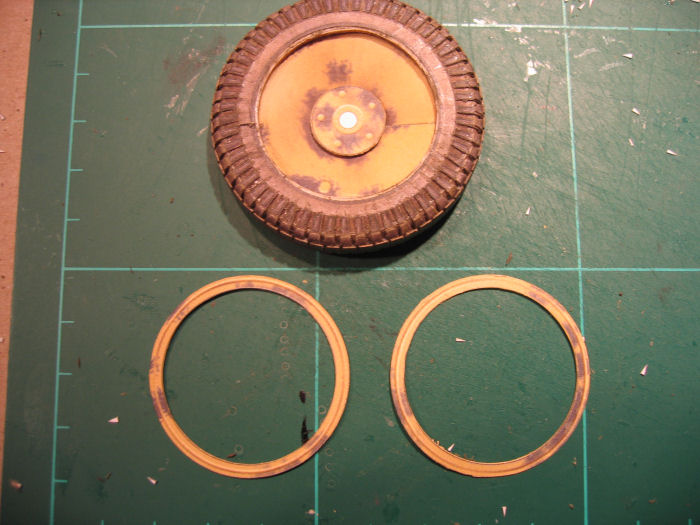

The rim edges

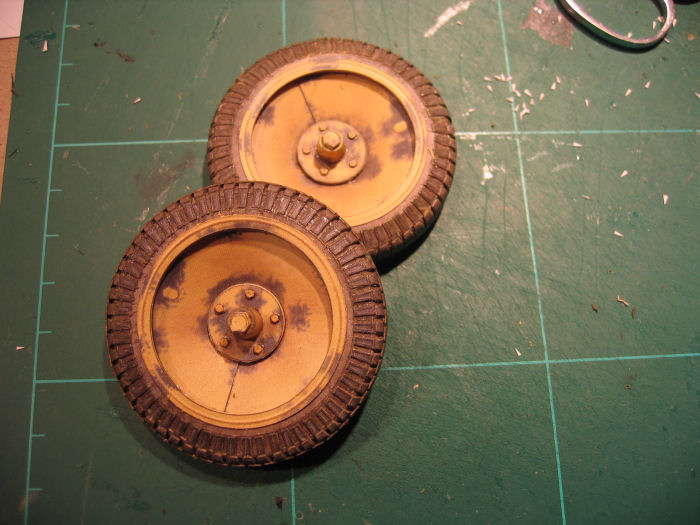

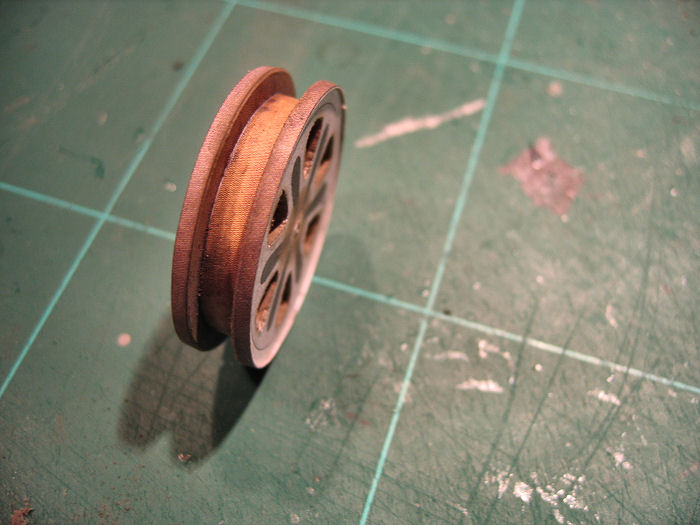

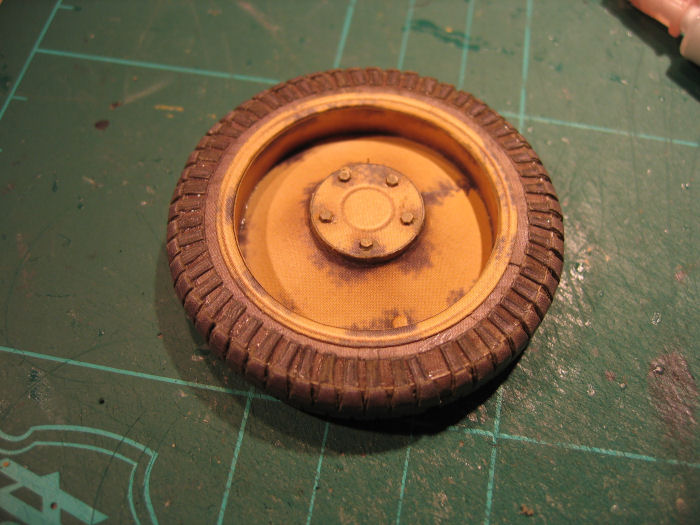

And the two wheels done

The drive wheels.

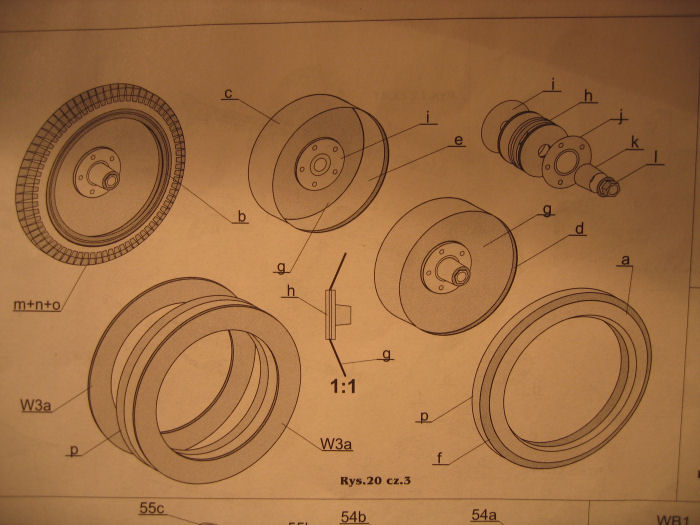

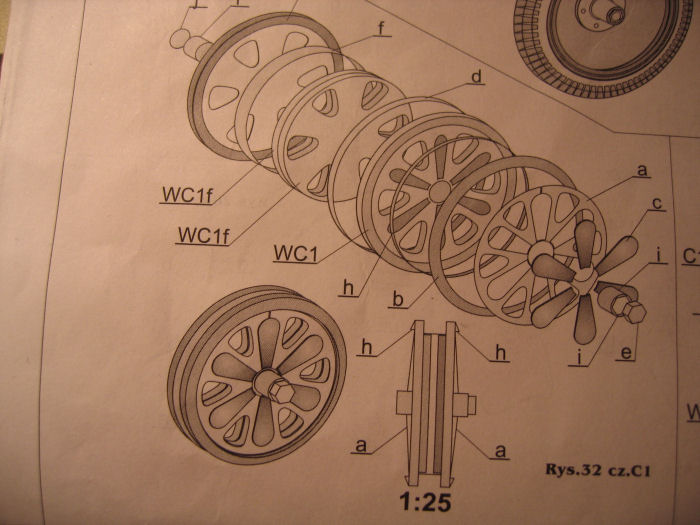

The drawing of the Drivewheels

Front

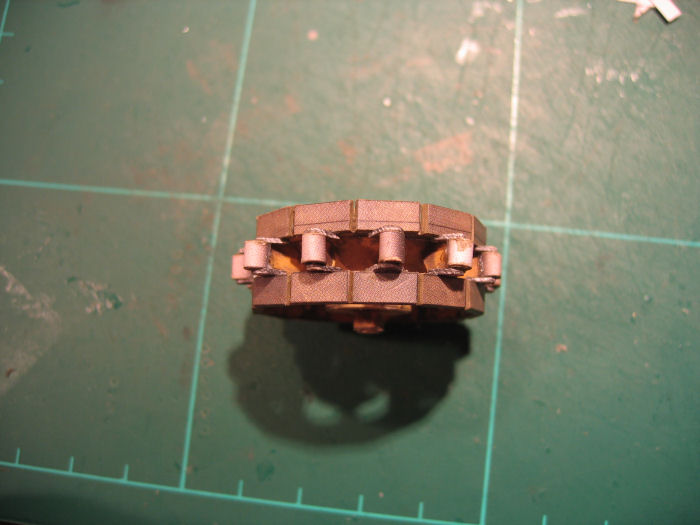

Top

Backside

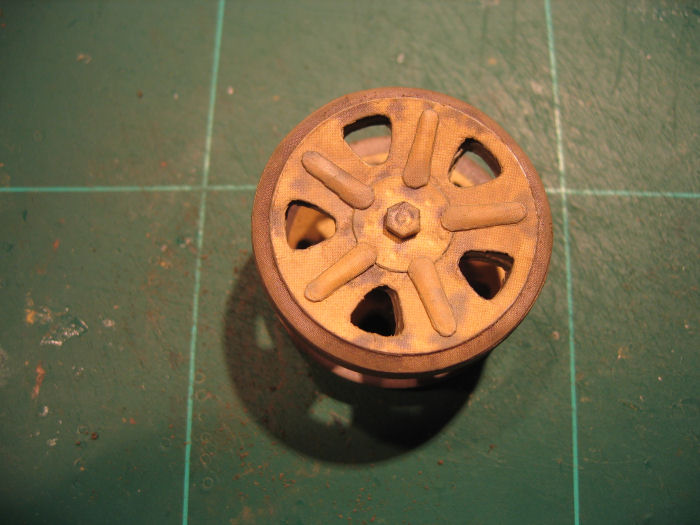

Closeup

The leading wheels

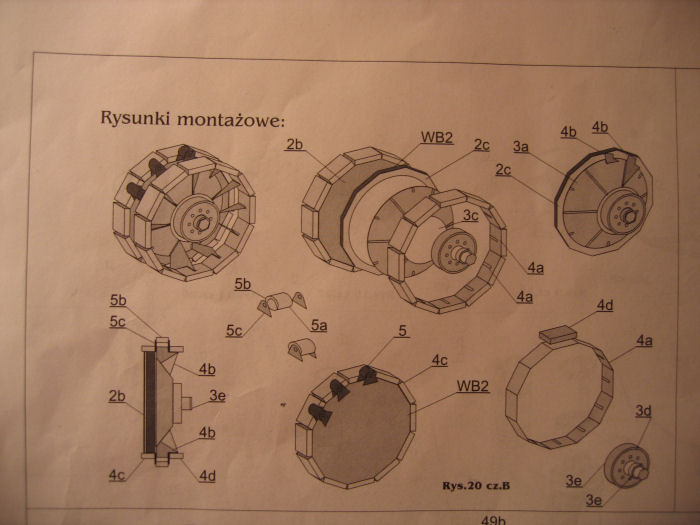

Drawing of the narrow leading wheels

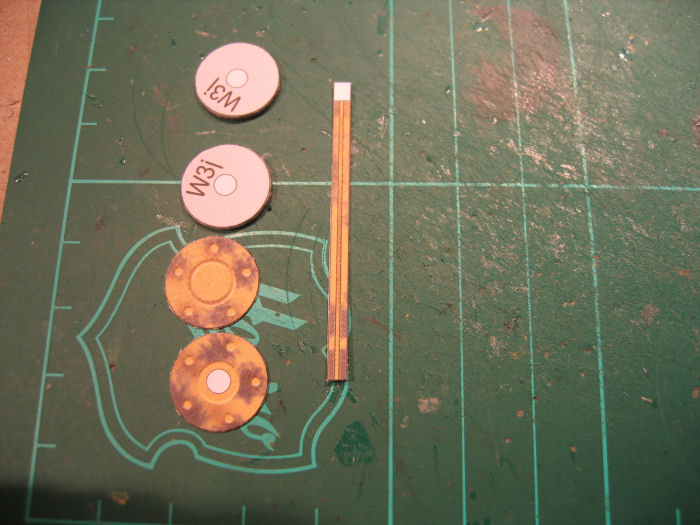

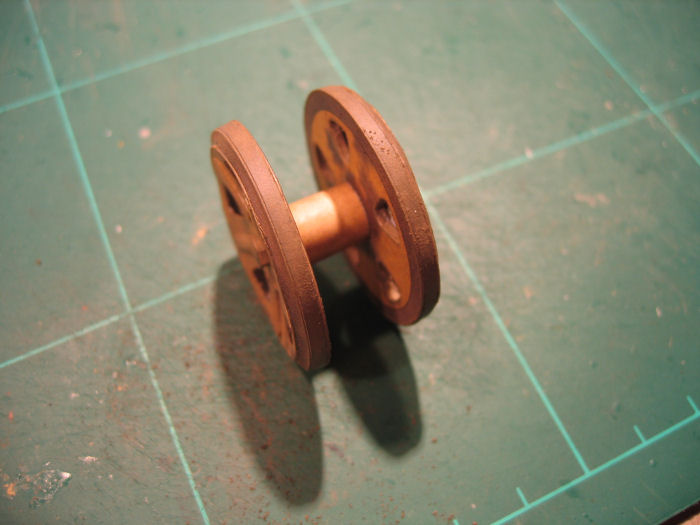

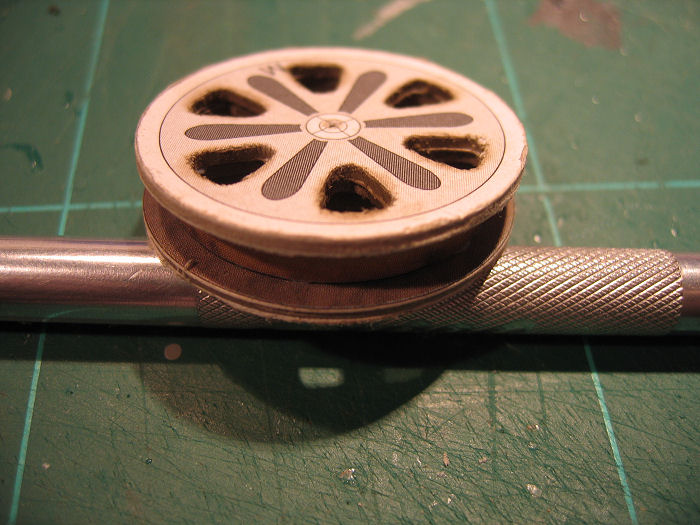

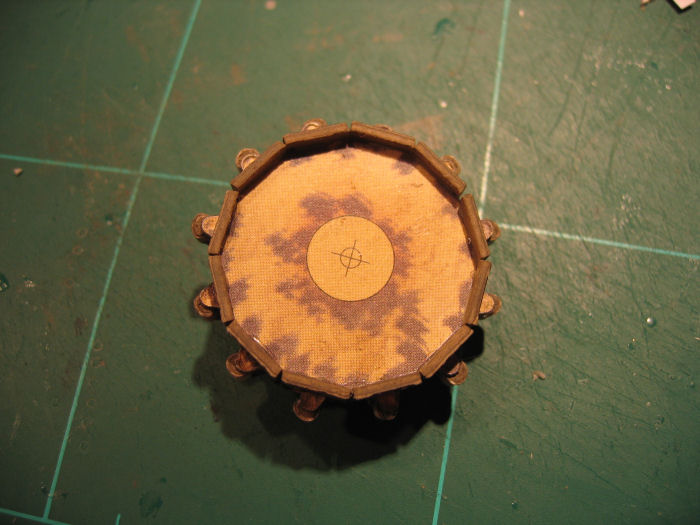

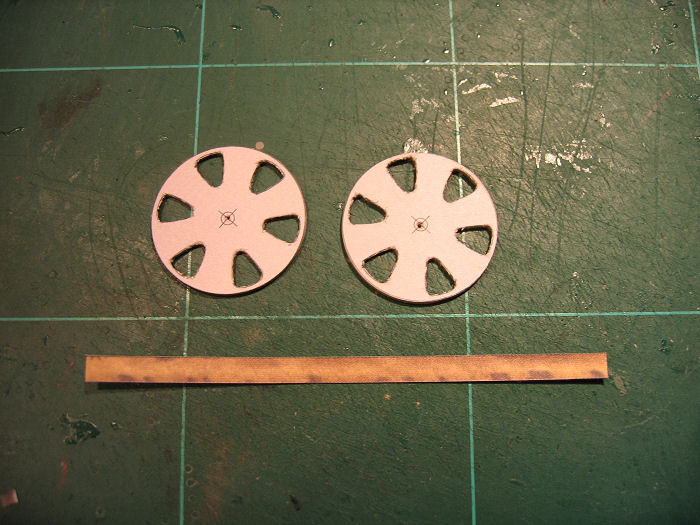

The centerpart is built up of two disks and the strip

A lot of cutting to make all the holes

All holes made in all the parts and edgepainted

The main structure

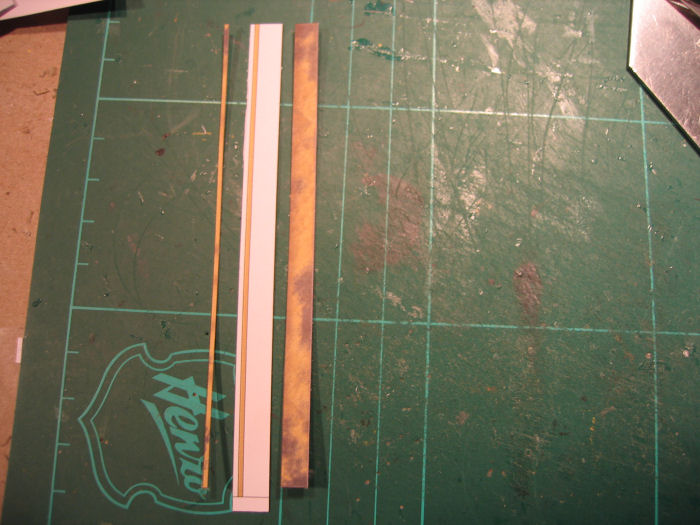

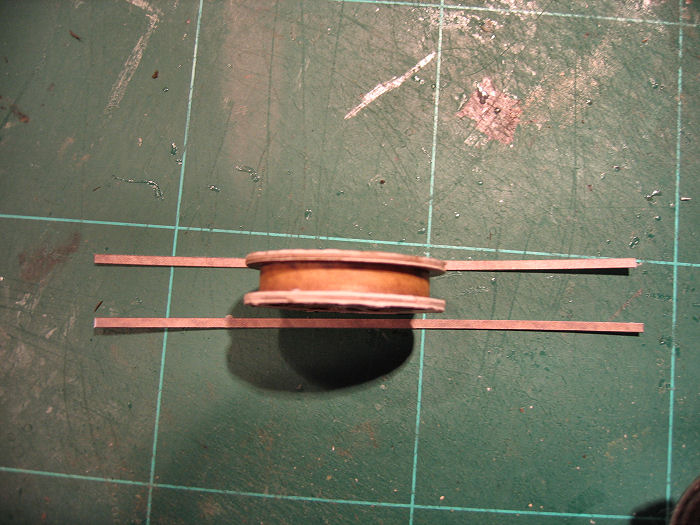

Adding the strips

The outer parts done

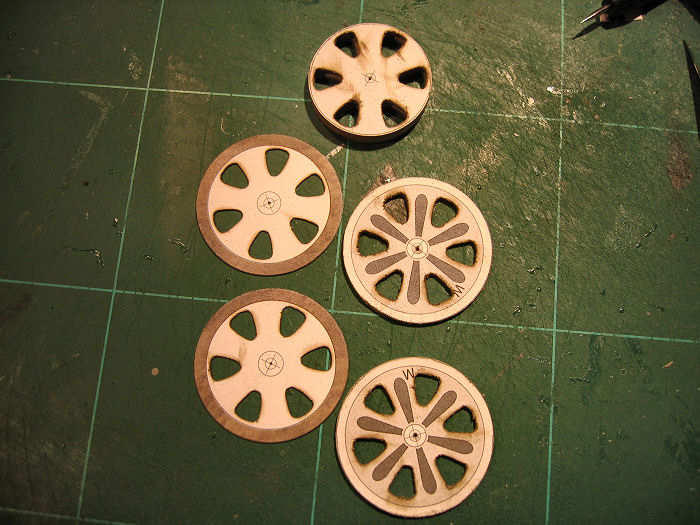

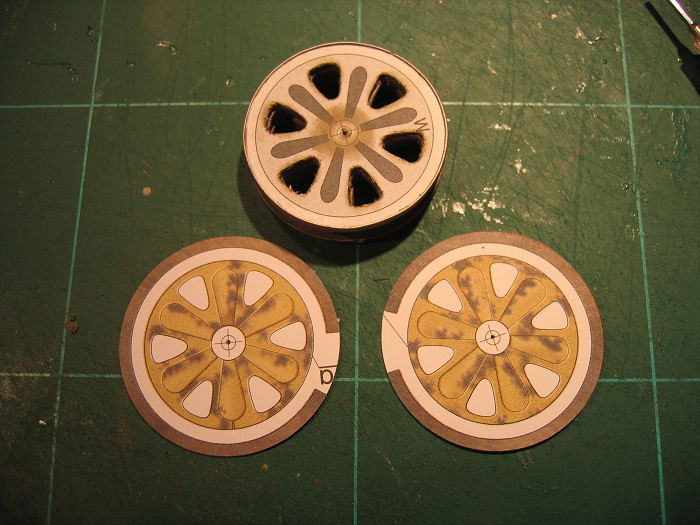

Centerparts and rim skins

Some steady cutting

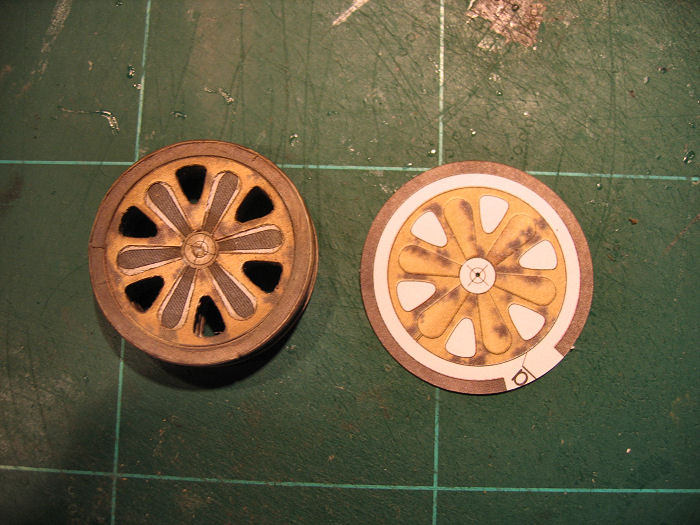

One side done

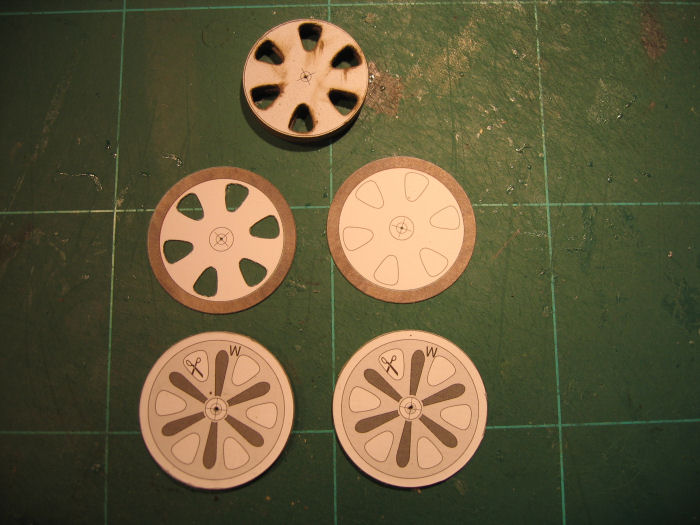

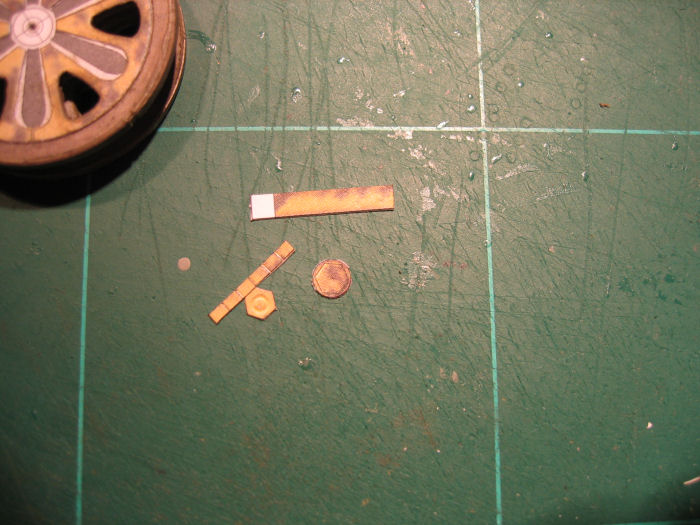

Parts for the hub

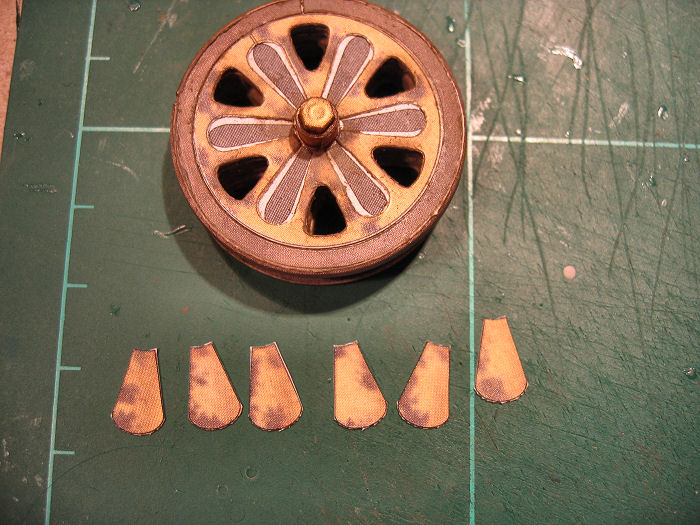

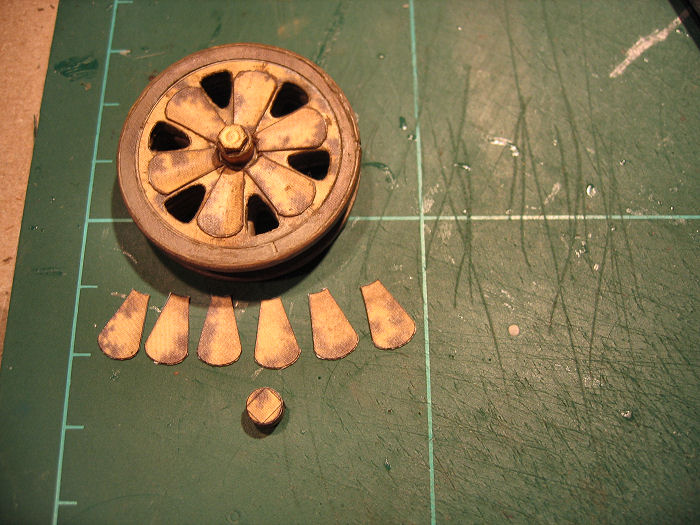

Parts to cover the holes

One side done

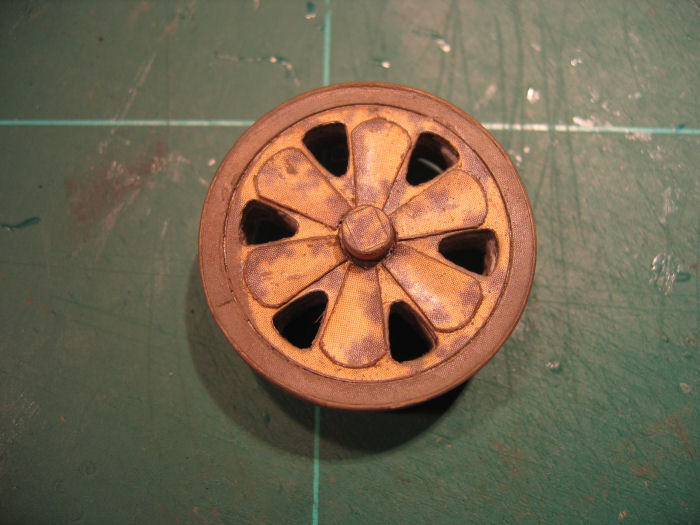

Finished and painted

Top view

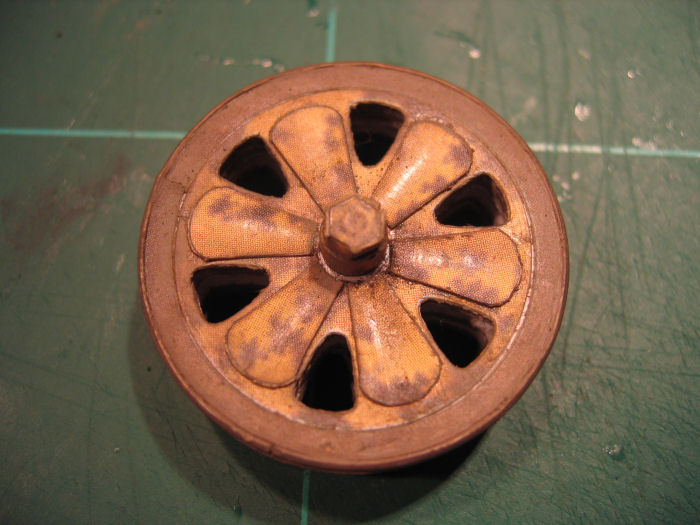

Closeup

Closeup

Two done

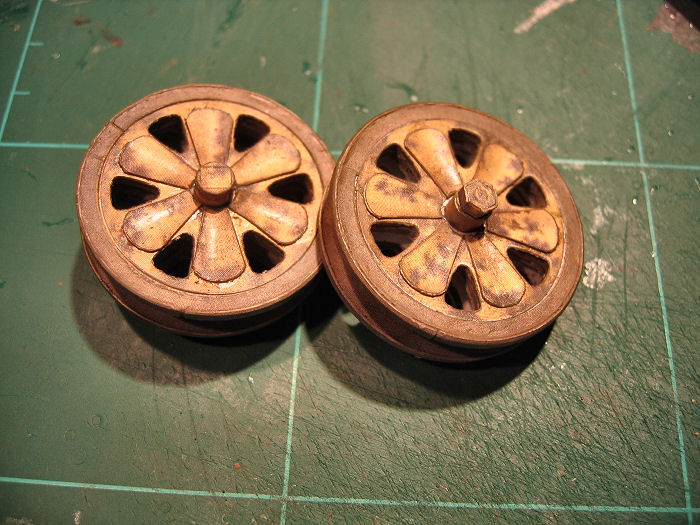

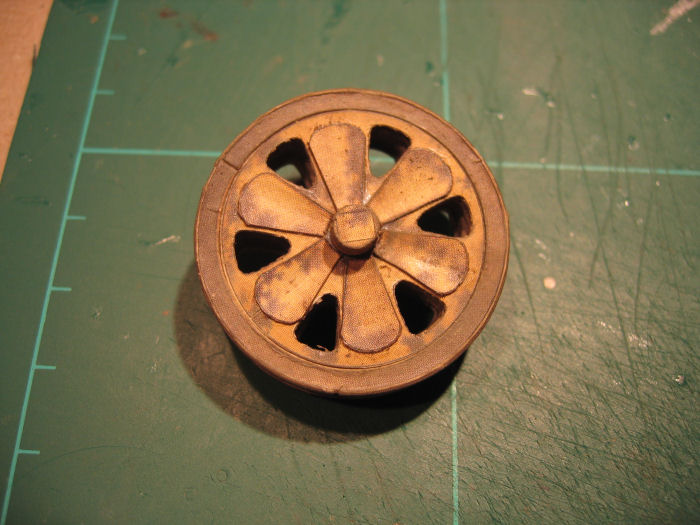

The wide wheels

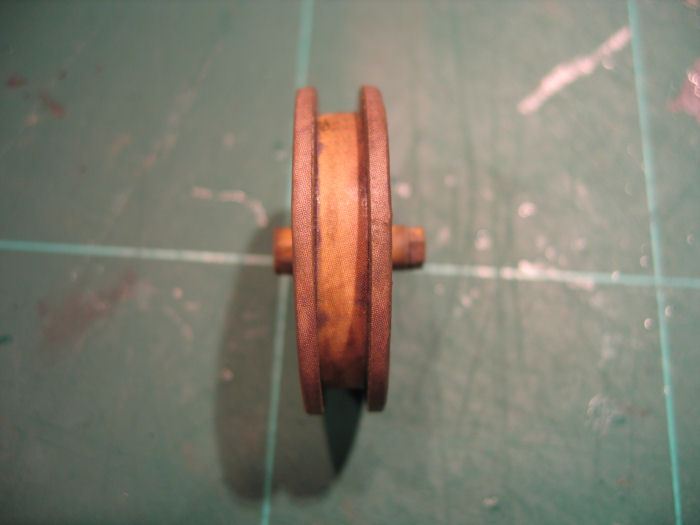

Top view
