Horch 1A 1:25 ,Modelik

Page 2



The front.

Horch Horch Horch Horch

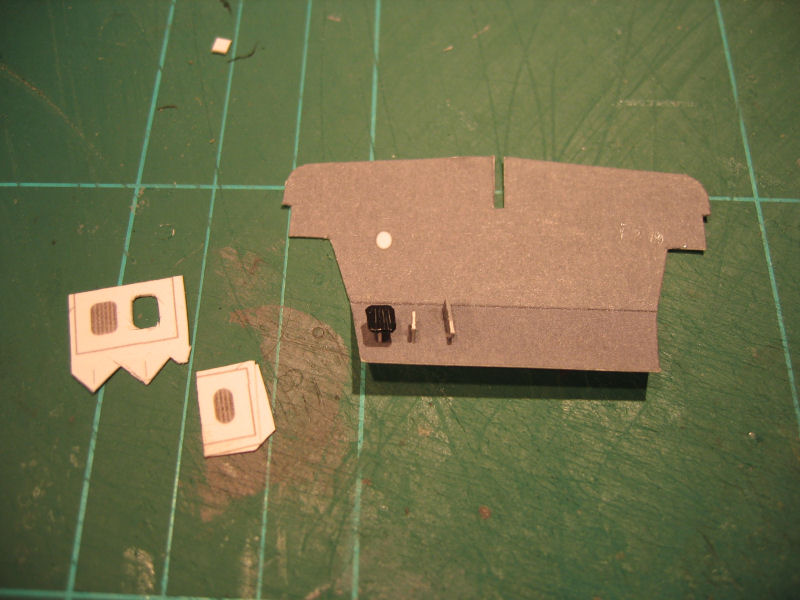

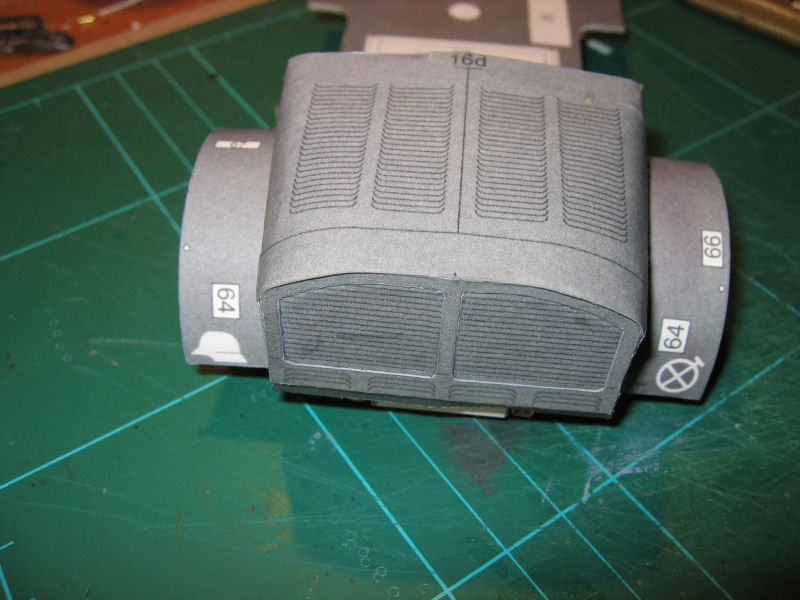

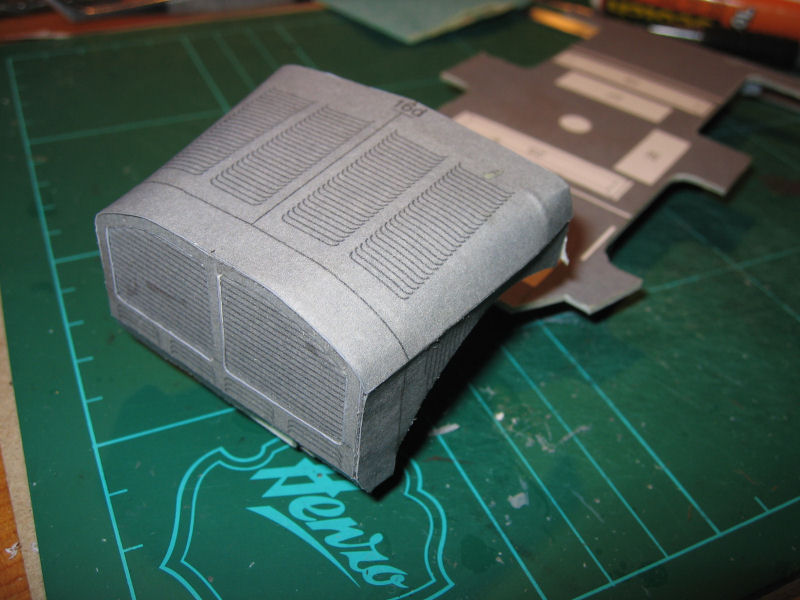

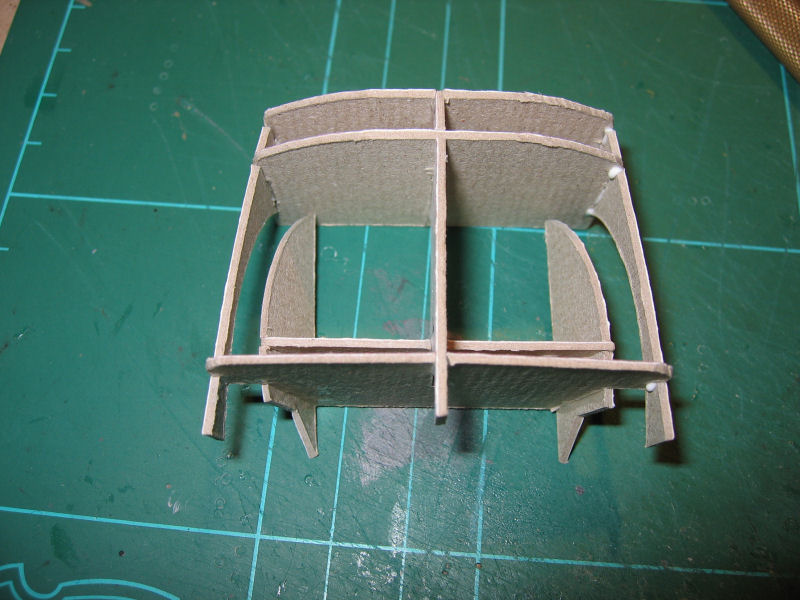

I have glued the parts to 1mm karton, and since there are no instructions in the book for this part I just followed the markings on the upper frame to see where the parts should go.. The framework is assembled and the two last parts are ready to go inn. And finished Here I have started to cover up the front.I wanted for a while to cut the airholes in the hood and sides, but decided to let that go......I tried on another part just to see how it looked, and it was very difficult to make it look good/real
Horch

The front fenders added


The interior.

Horch Horch Horch Horch

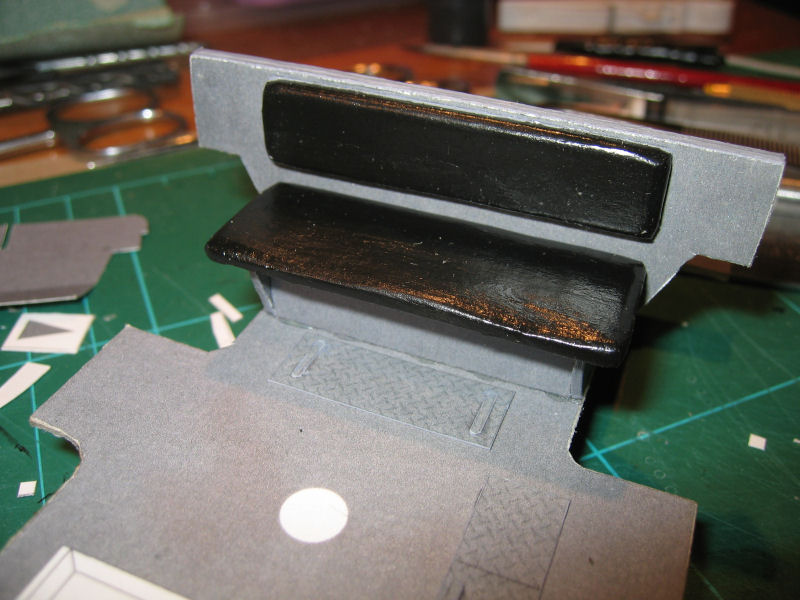

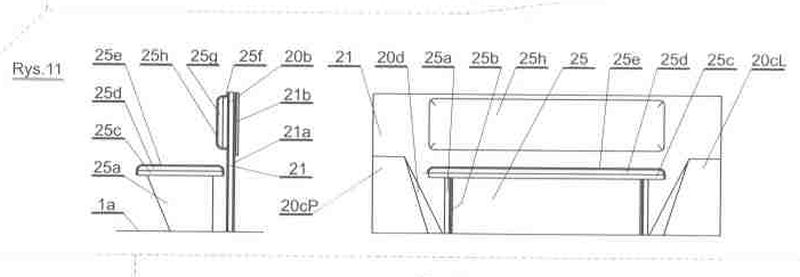

The rear seat.Drawing of the seat. Straight forward assembly.The seat parts glued to 1mm karton, sanded to make the edges "round".The seats are sanded a bit on two places on the front edge to make them look kind of worn with the arseprint on the seats. The back of the seat are also glued to 1mm karton,sanded and painted and glued to the "wall". The floor protection in place I also started to make the pedals.One glued in place

The construction report of the second back seat. The seats and walls are almost identical , so I'm just posting one report on them. The drawing is the same as for the first seat I made.

Horch Horch Horch Horch

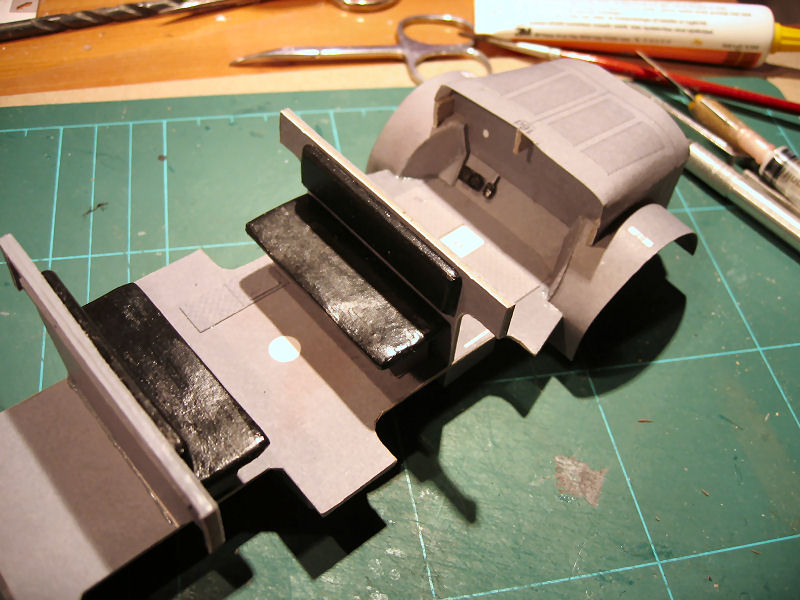

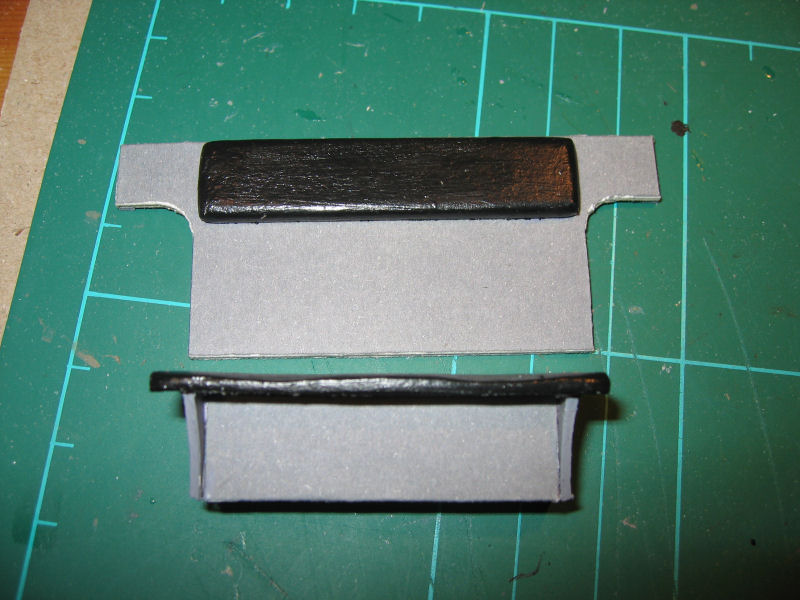

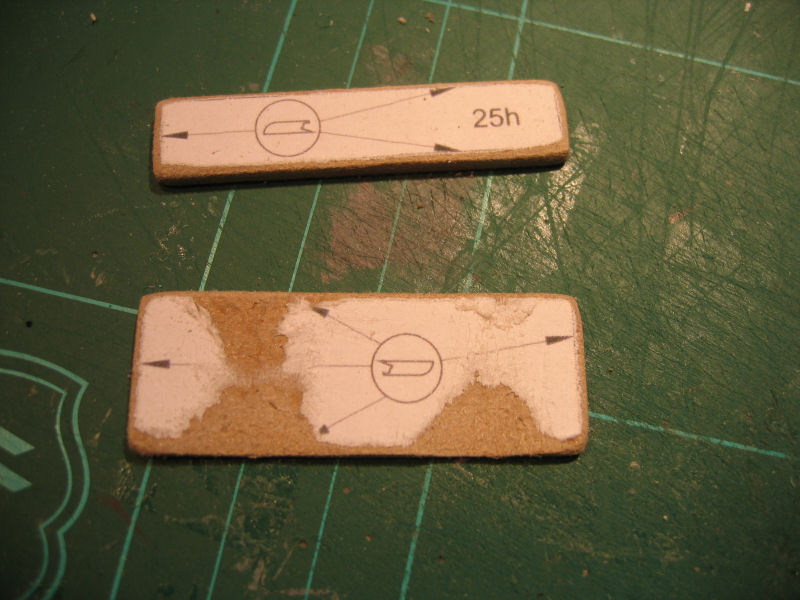

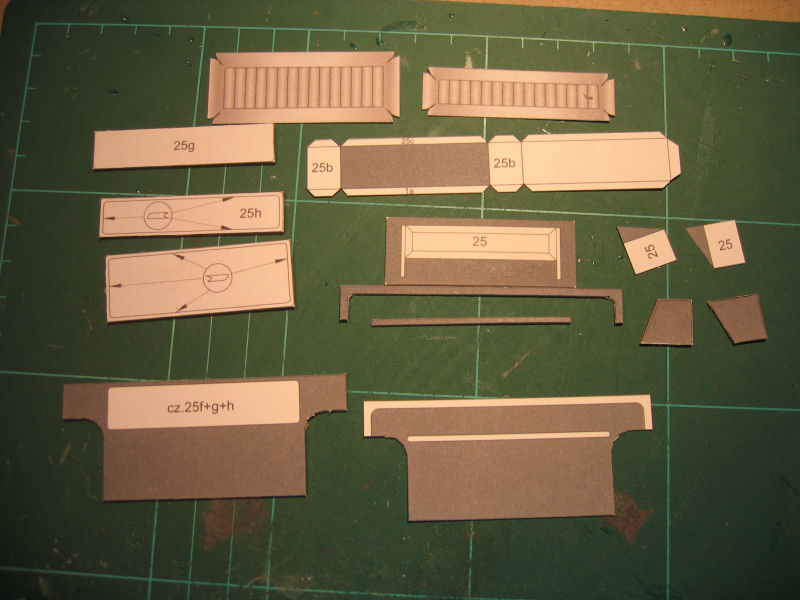

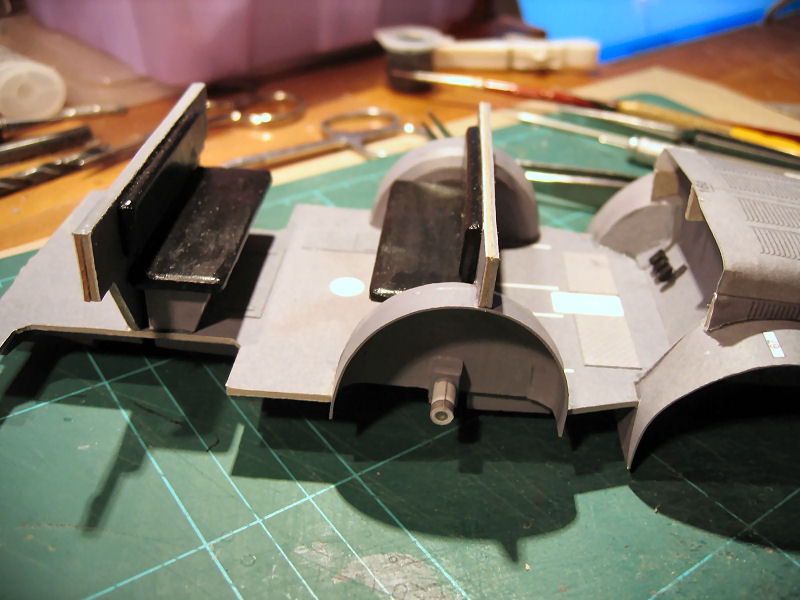

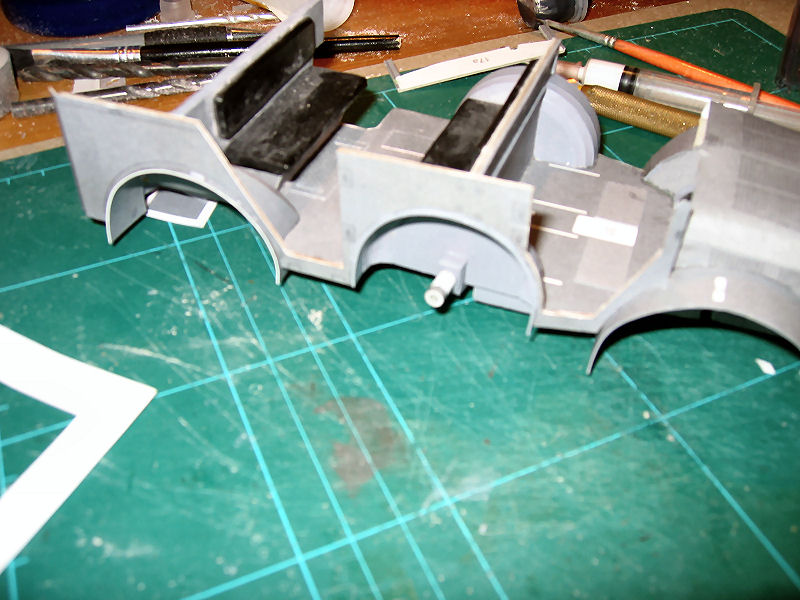

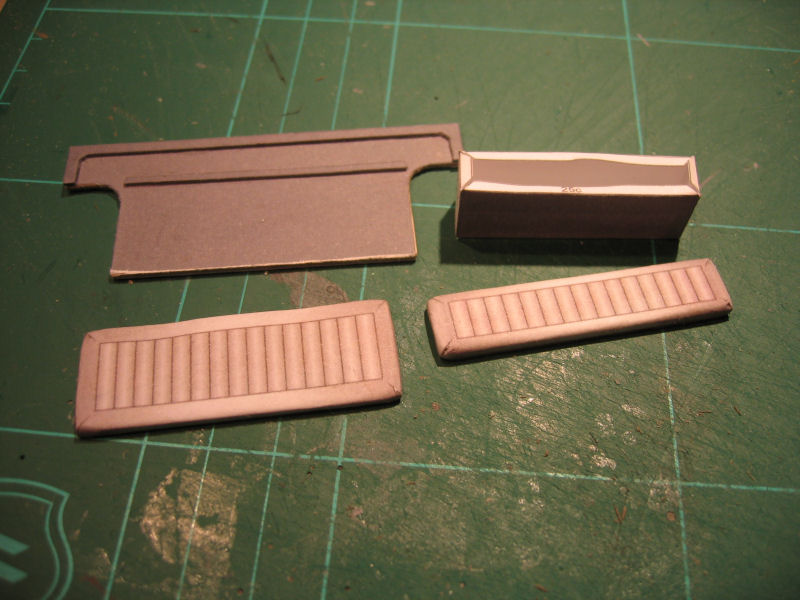

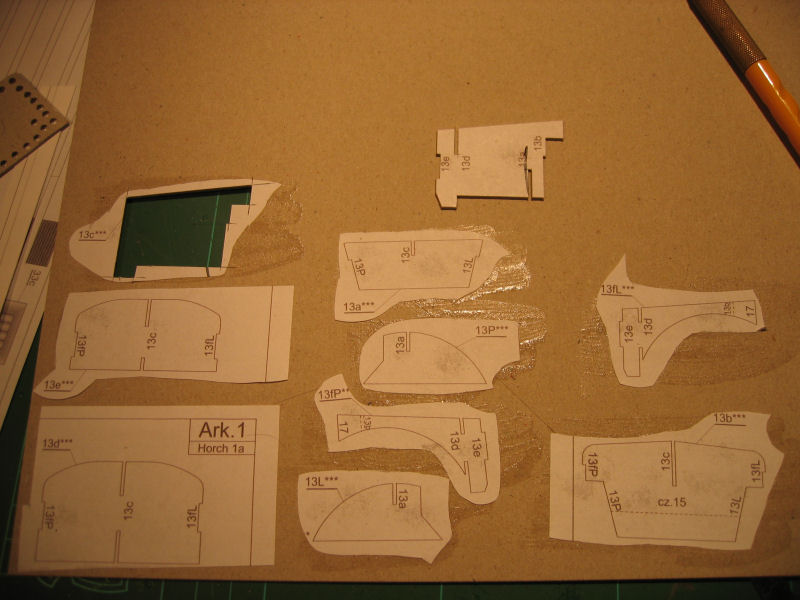

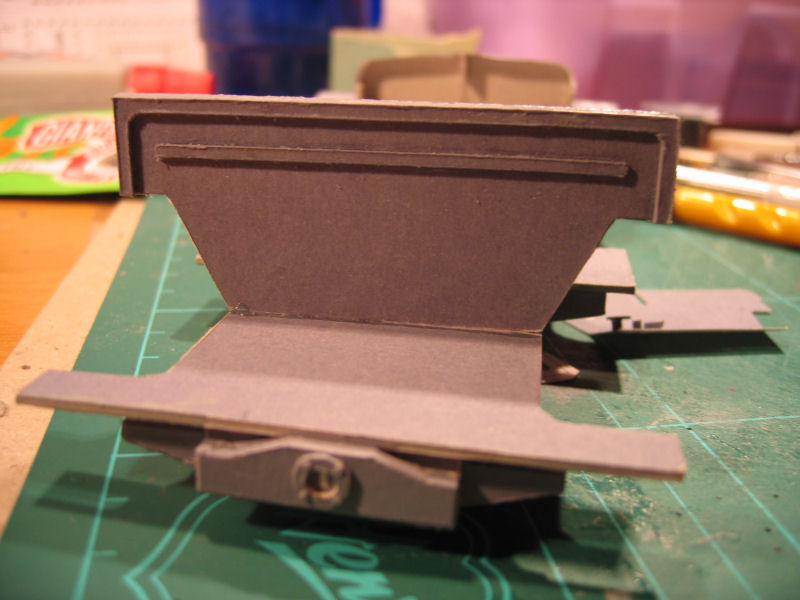

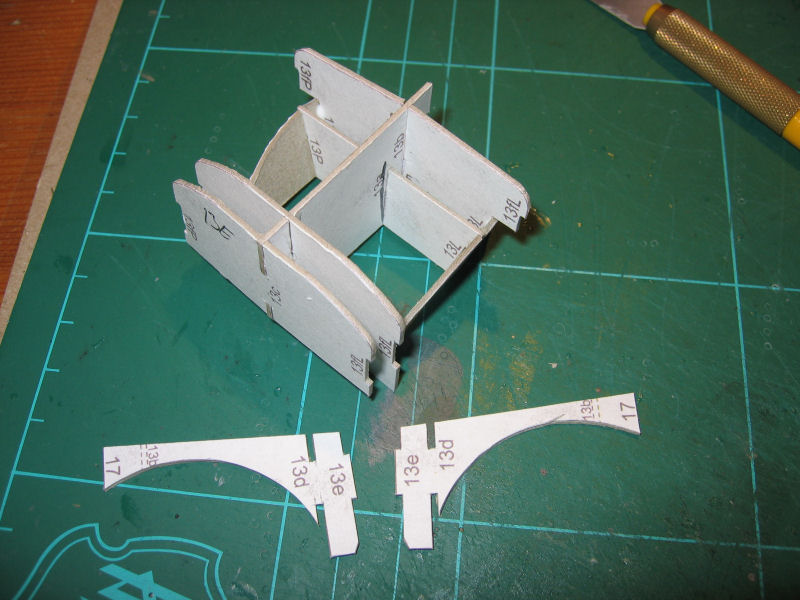

The rear "wall" which is the base for the rear storage room. The inside of the fenders was a bit tricky to get nicely done...... Here are the parts to be used.The seatparts and the one wall part is glued to 1mm karton. The parts are glued together and grinded to make the edges round.Here we also can see that I have grinded the seatmarks to make the seats look more used.
Horch Horch Horch Horch

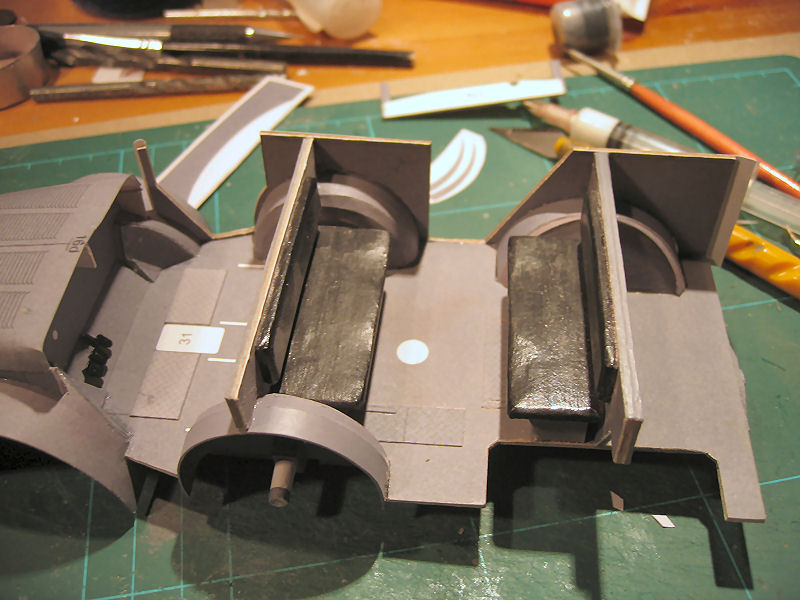

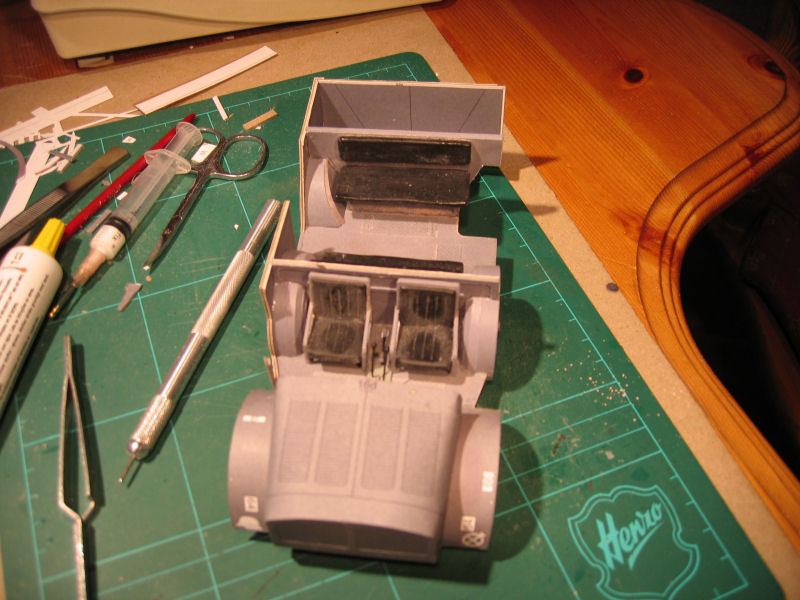

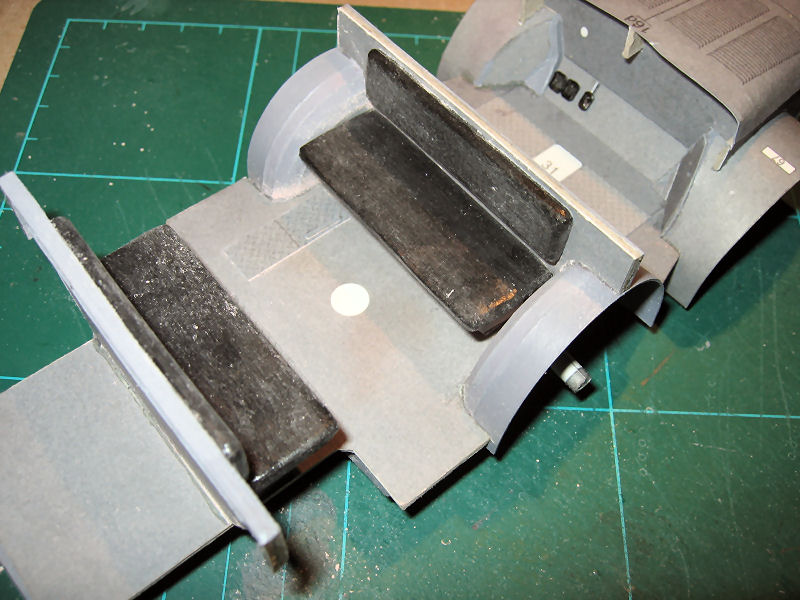

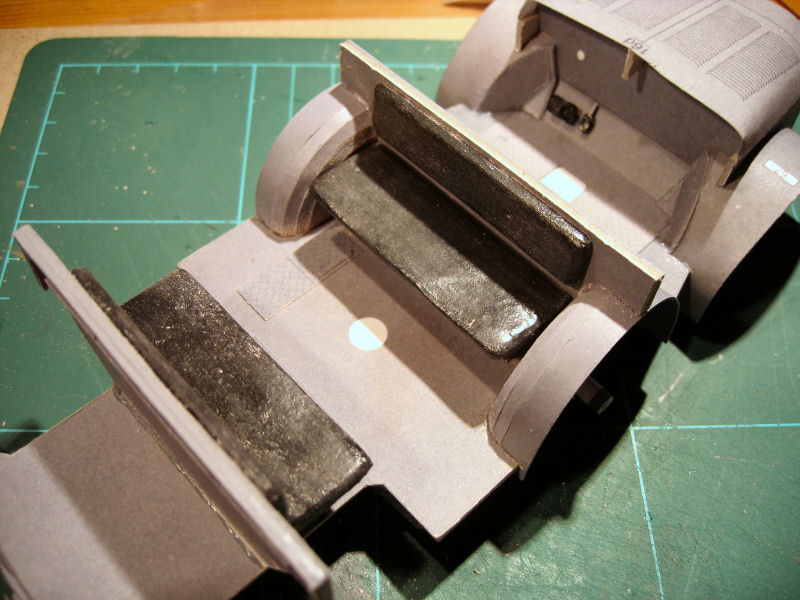

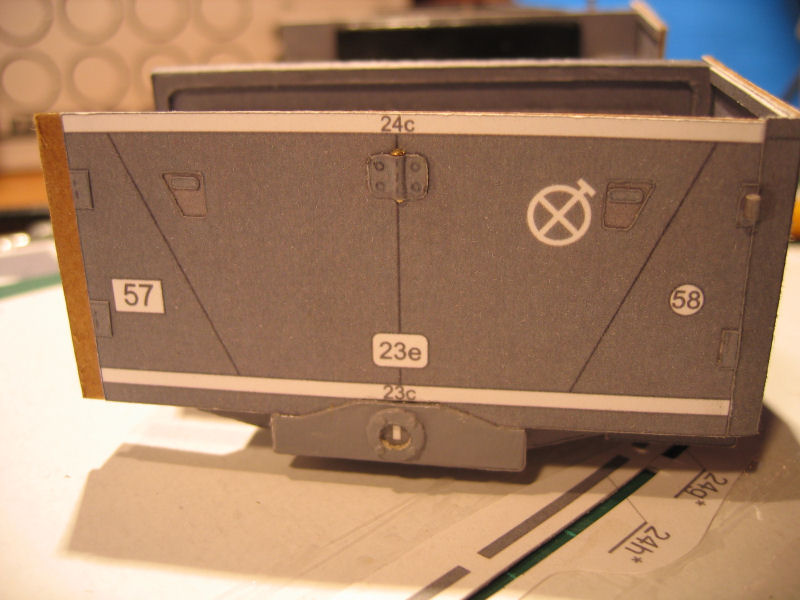

The different parts are assembled, the wall, the back of the seat, the seatbase and the lower part of the seat. The seatback is glued to the wall, and the seat is glued to it's base and painted. The front wall and seat are glued into place. Here I have glued the spare tires fenders into place
Horch Horch Horch Horch

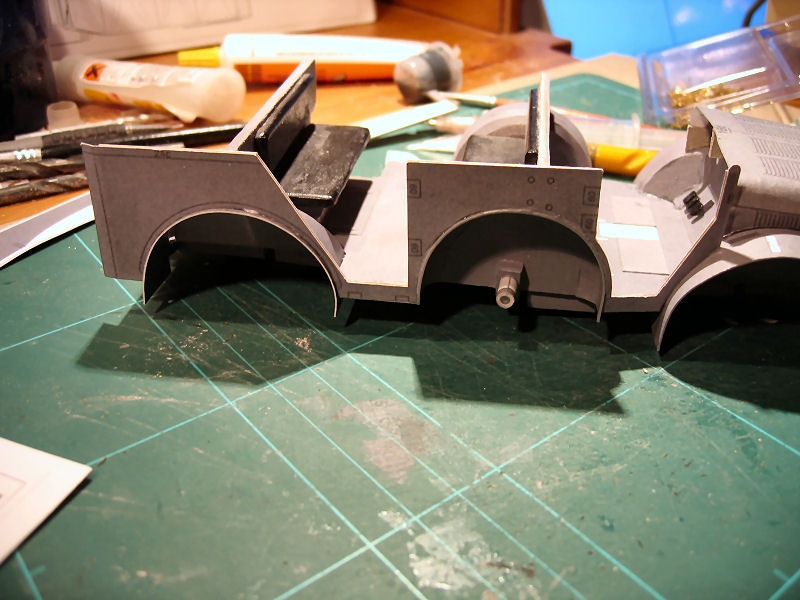

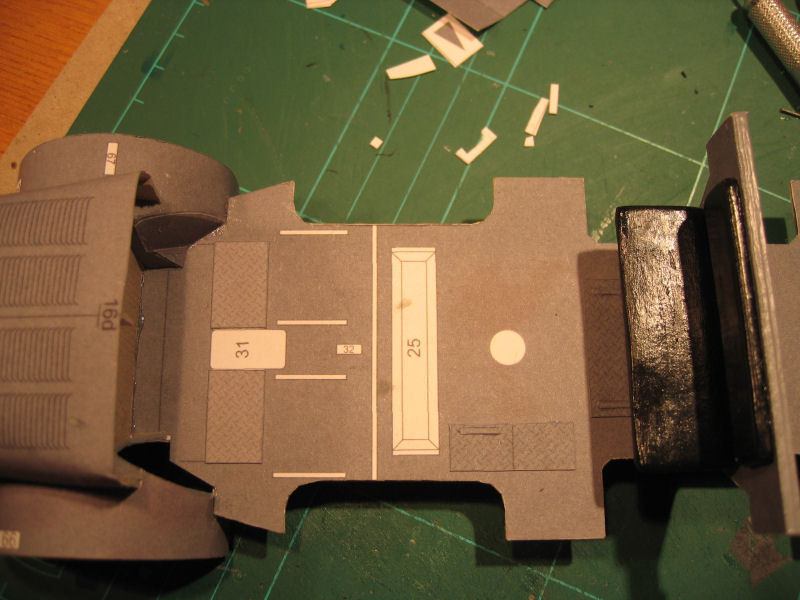

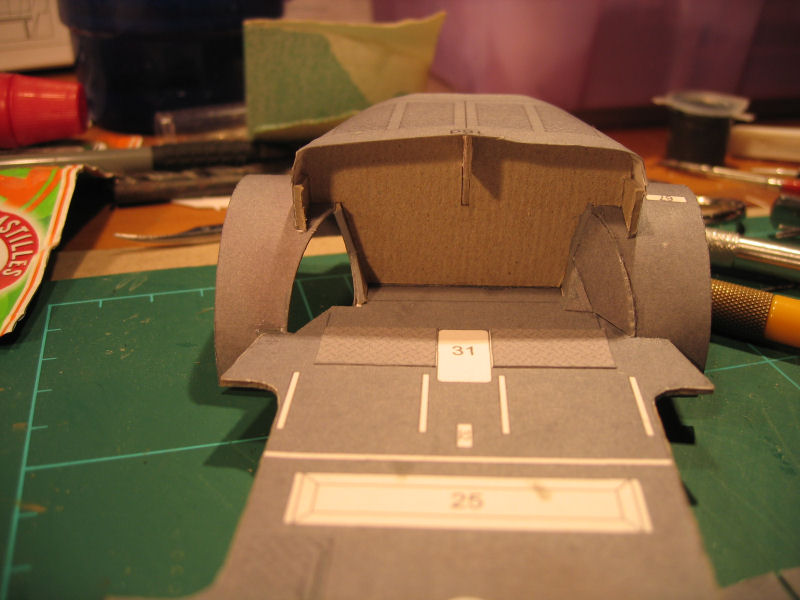

The 3 pedals are also glued together with the torpedo wall. Some chalkdust have been applied. The right side is glued in place. Seen from inside
Horch Horch Horch Horch

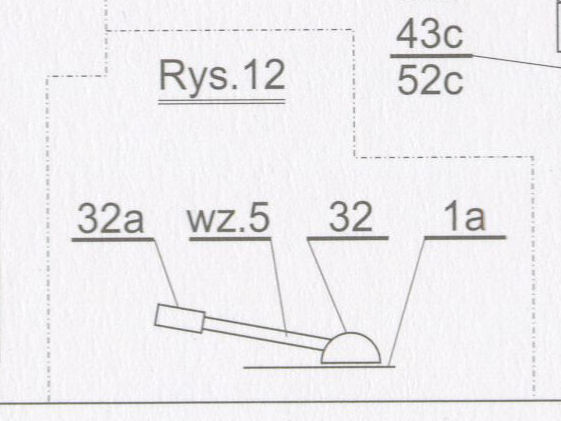

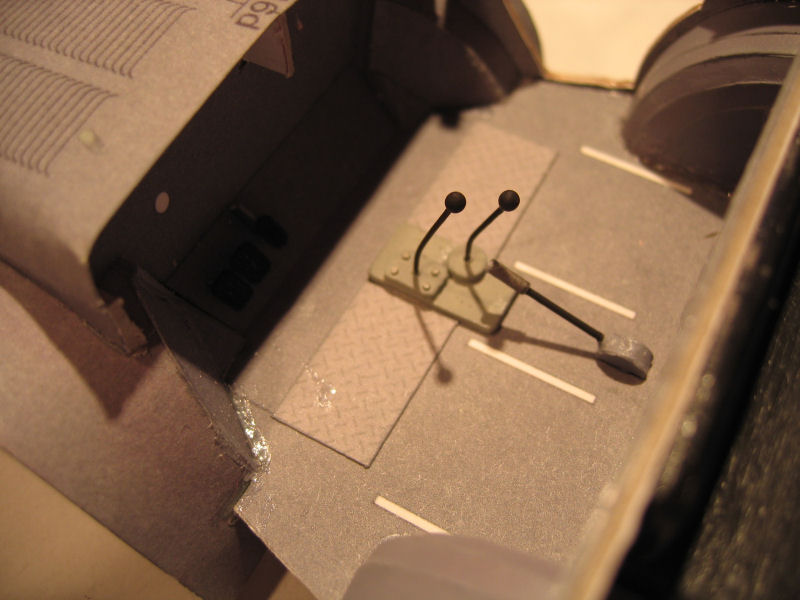

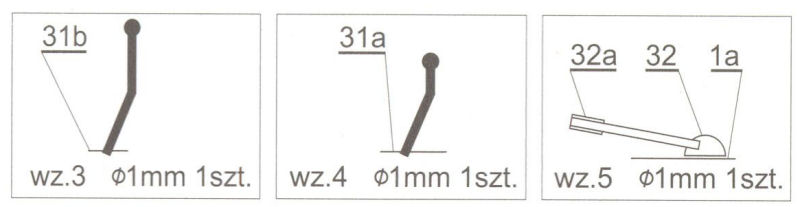

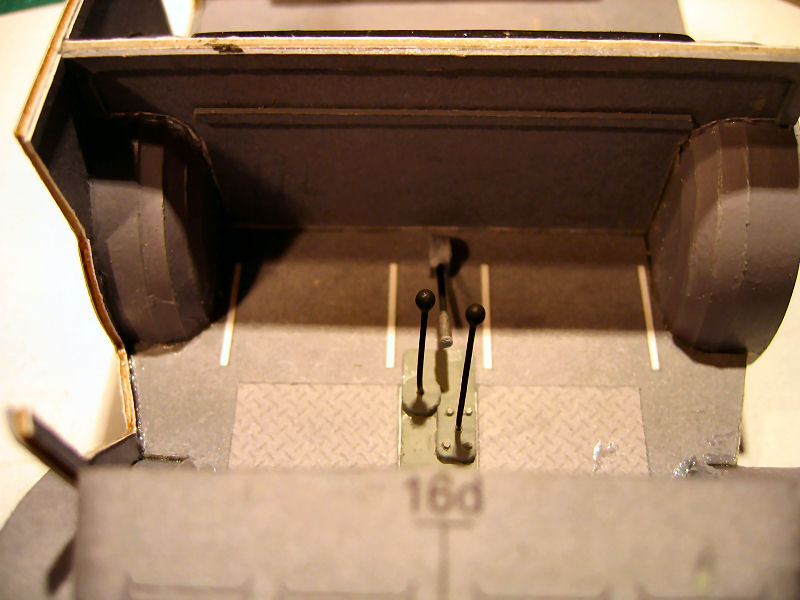

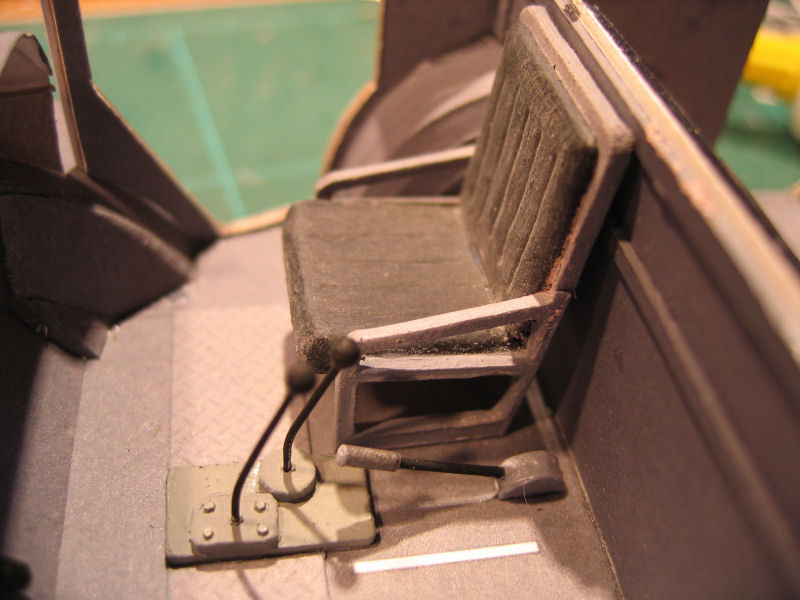

Another view. Drawing of the handbrake. Drawing of the gearhandles Gearhandles and handbrake in place
Horch Horch Horch Horch

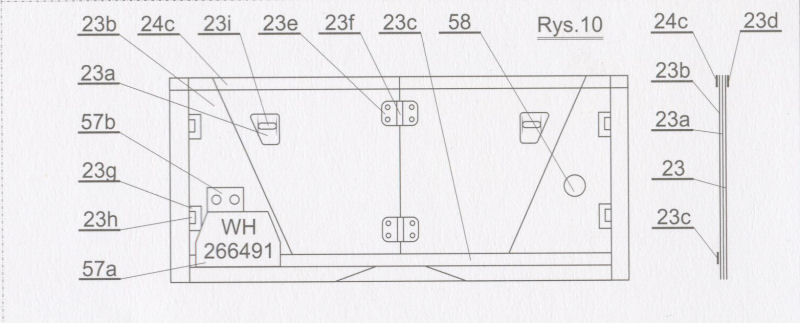

Another view of the handles. Drawing of the rear end Making the hinges Closeup

The front seats

Horch Horch Horch Horch

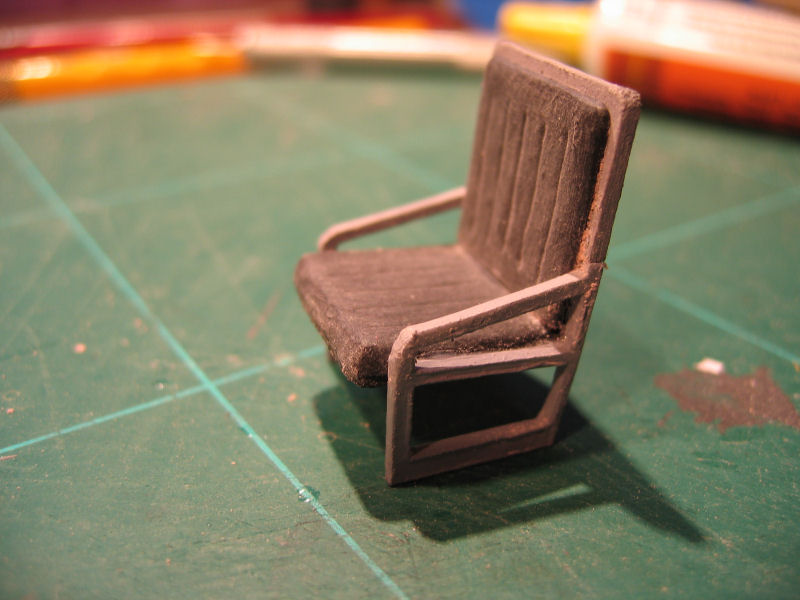

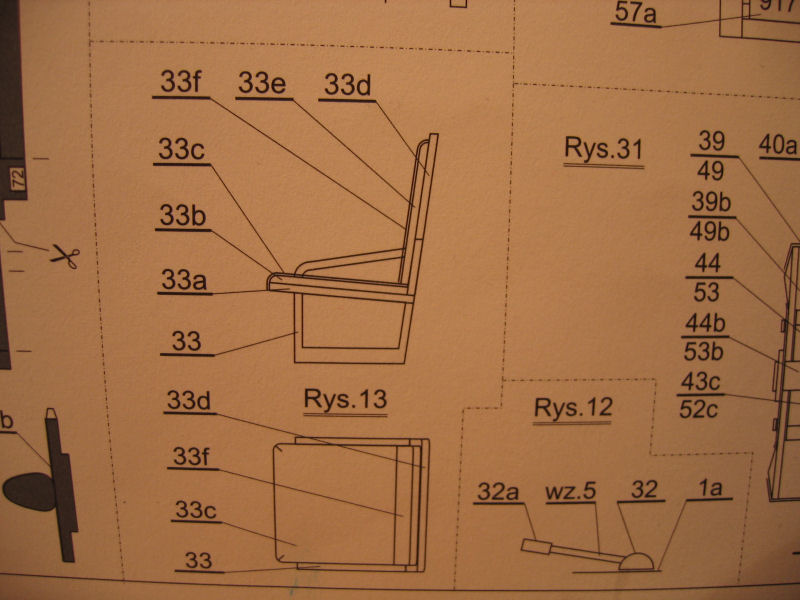

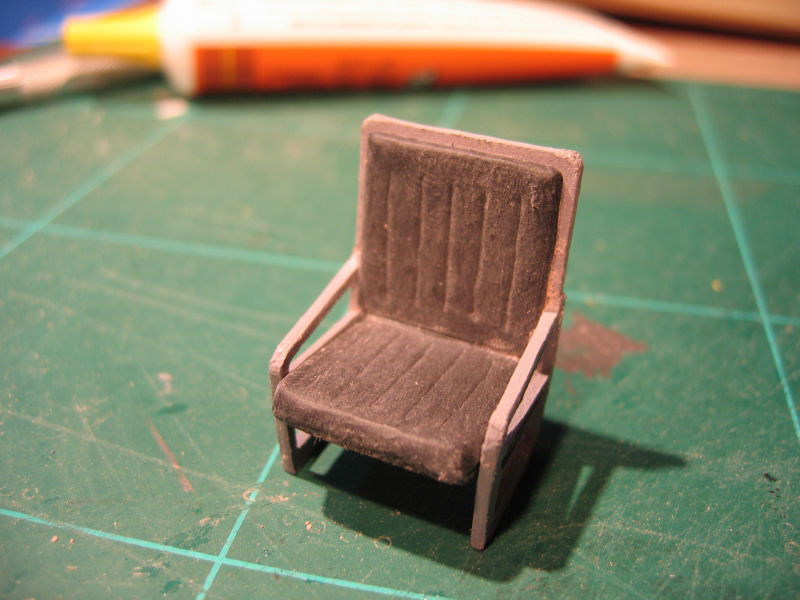

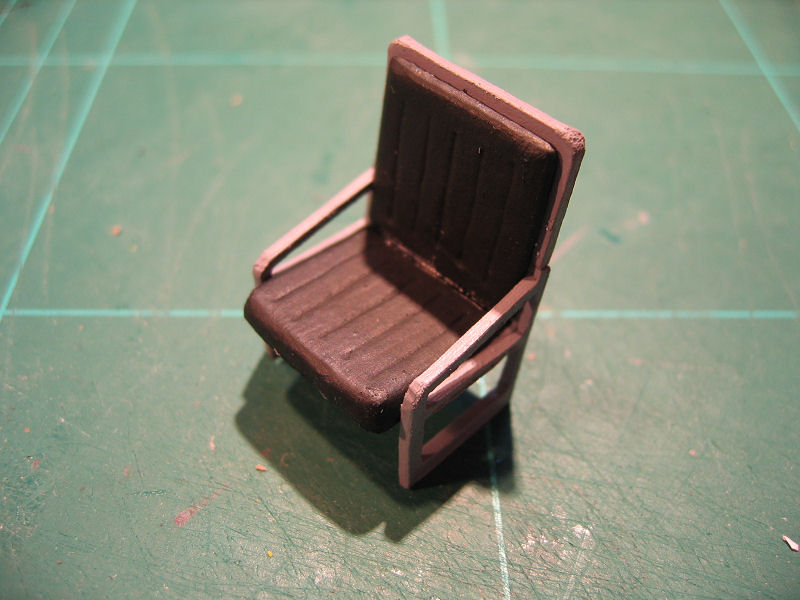

The drawing of the seats. The frame is cutted out of 0,5mm karton, and seat and back is glued to 1mm karton. The seat assembled. Some chalkdust added to make it look more dirty
Horch Horch Horch Horch

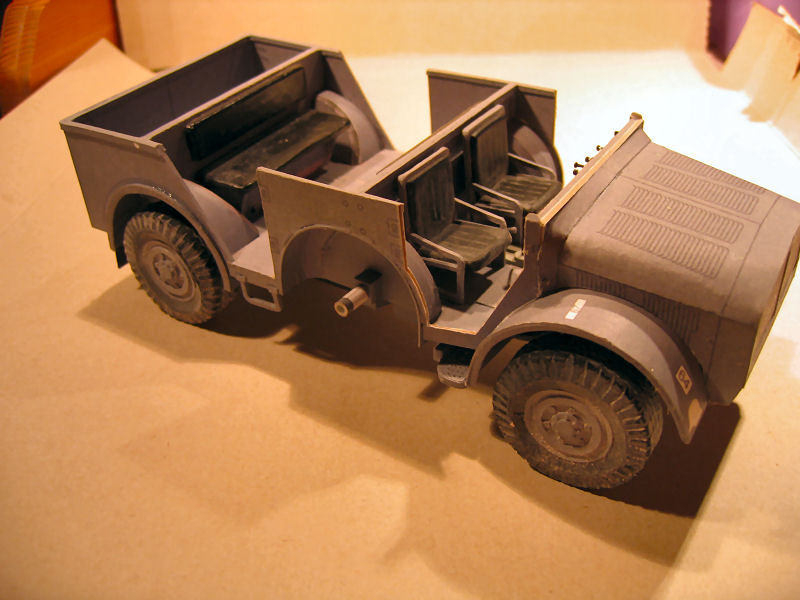

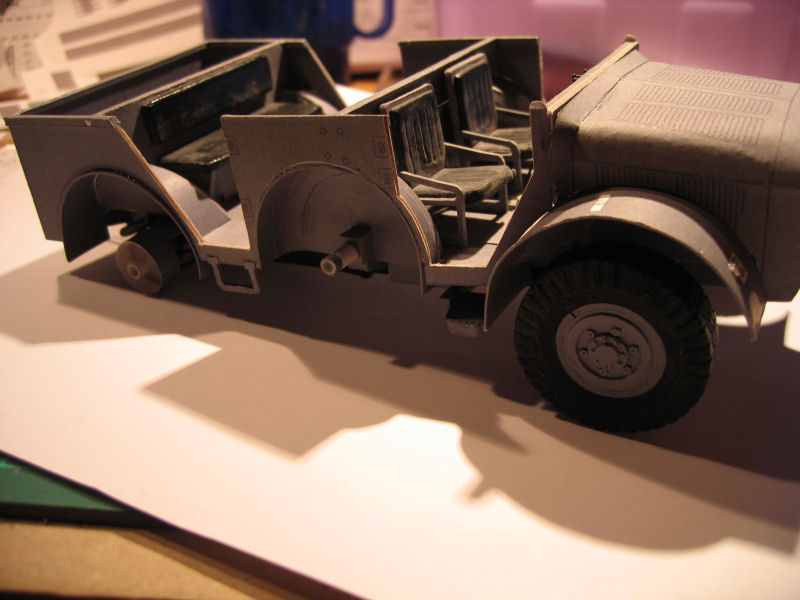

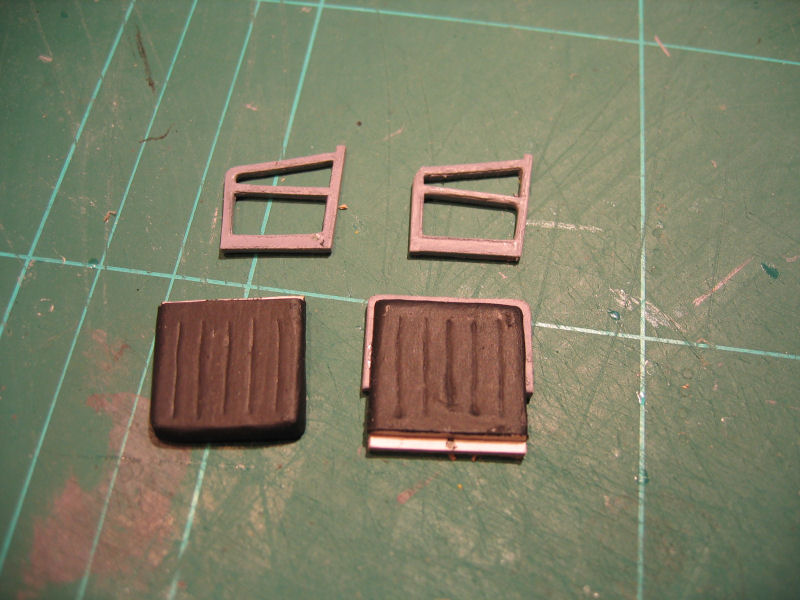

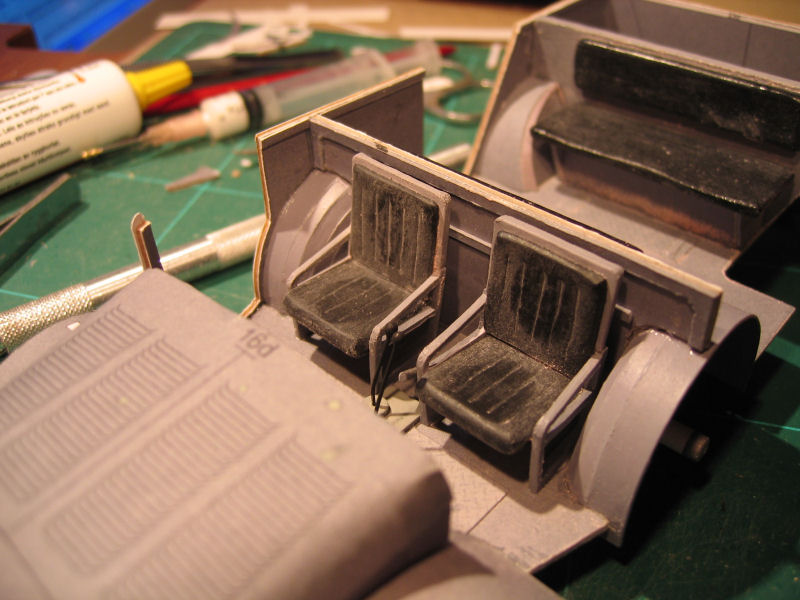

Another view. Placed into the car. Here are the second front seat.Parts cutted out and ready for assembly Here I have grinded the parts on the sides to make the round shape of the cushions.
Horch Horch Horch Horch

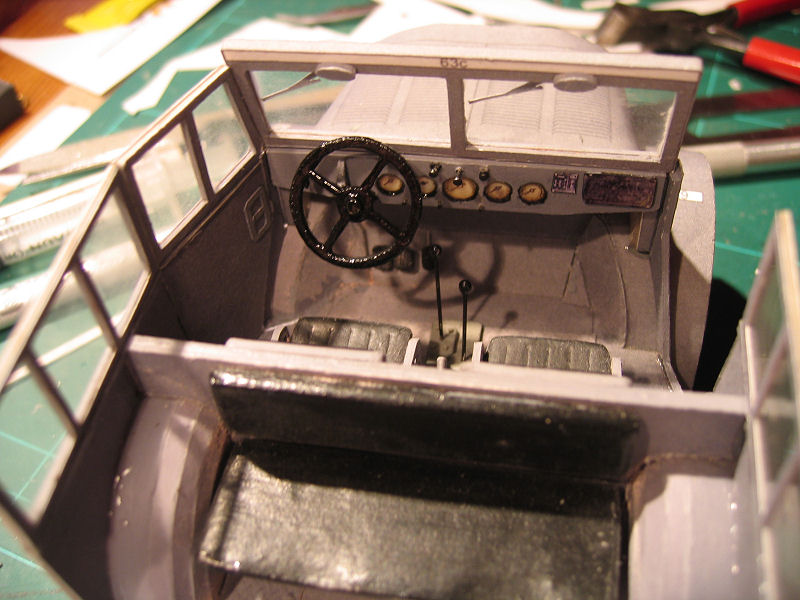

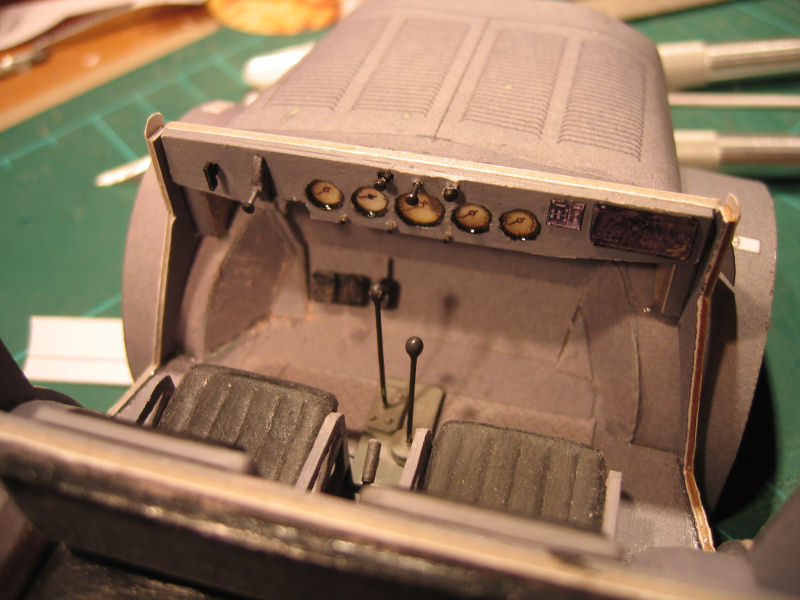

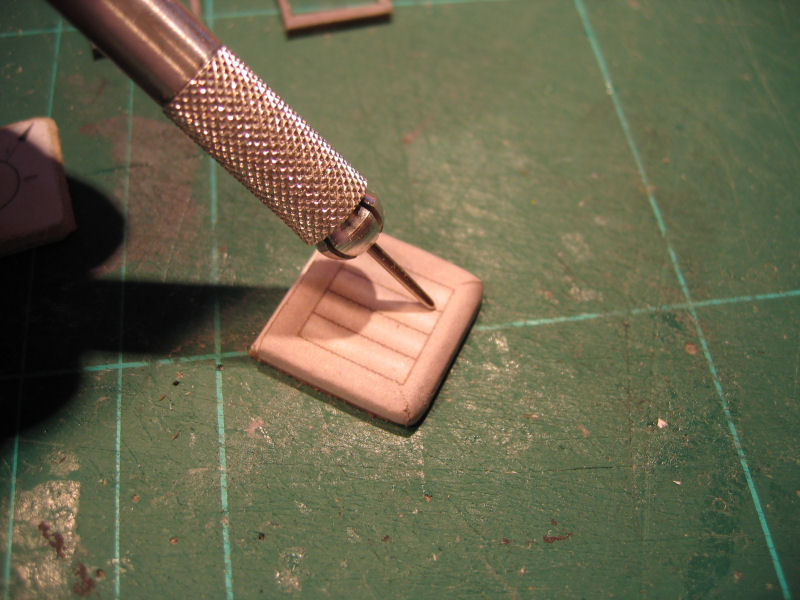

I used my score tool to make the "seams" in the "leather". Both seats in place. Closeup Instrumentpanel added

Suspension.

Horch Horch Horch Horch

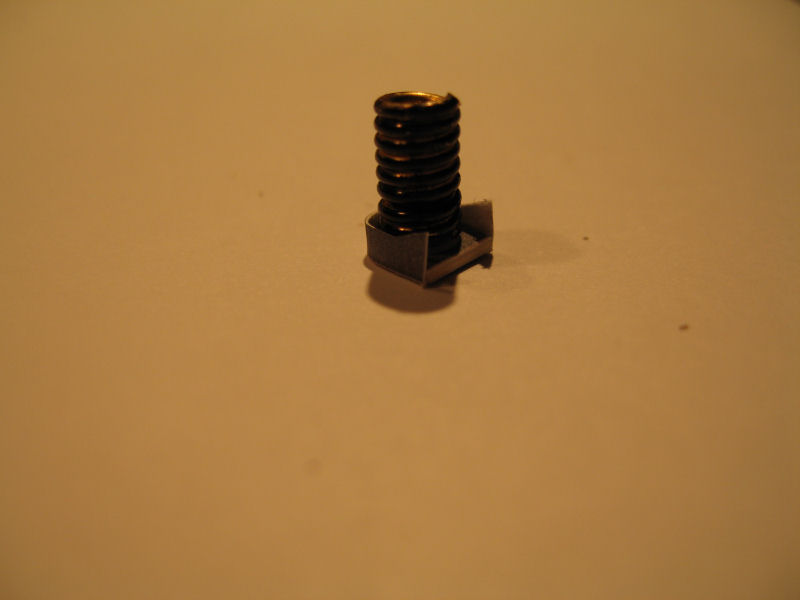

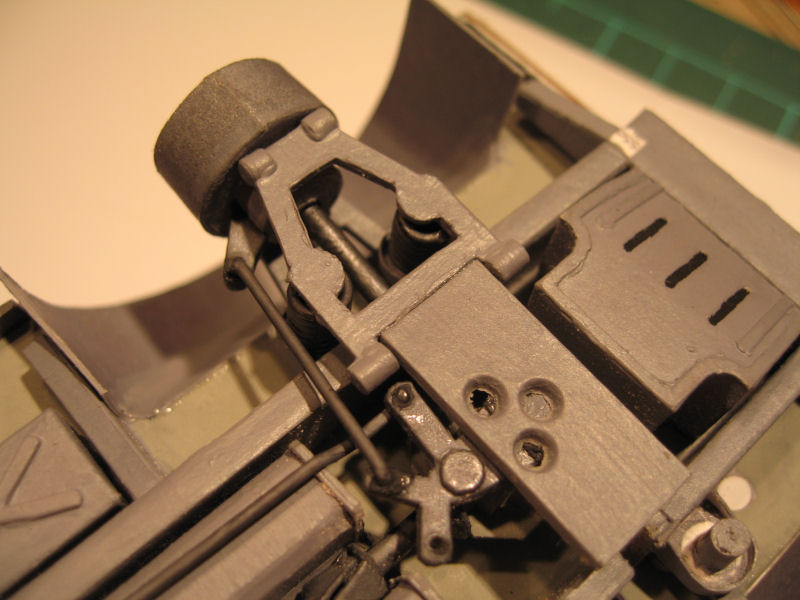

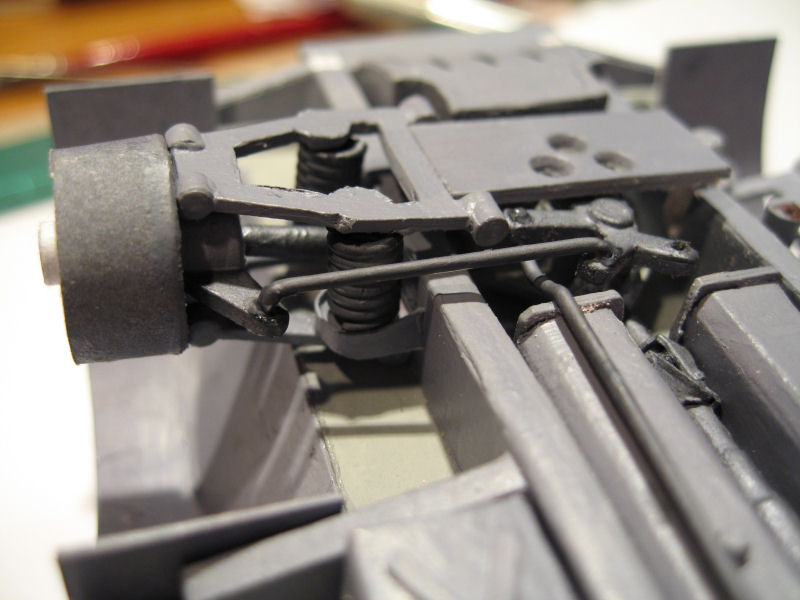

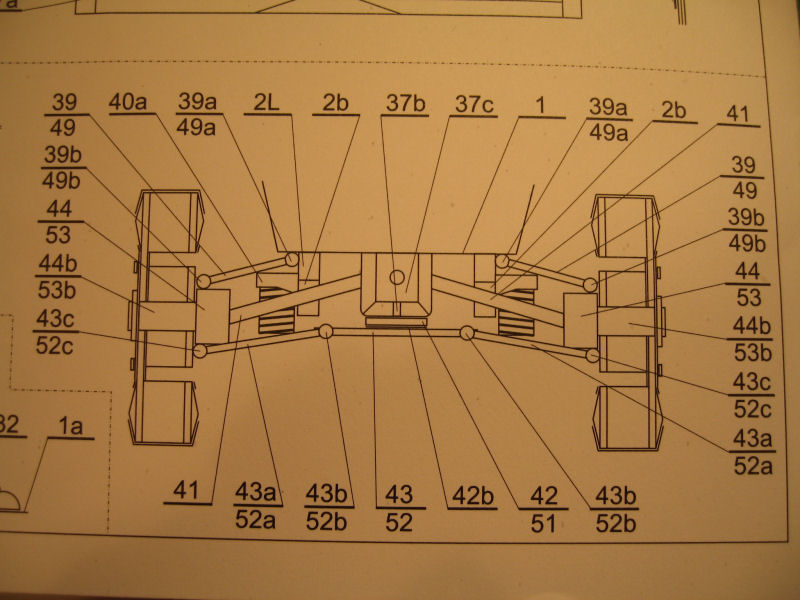

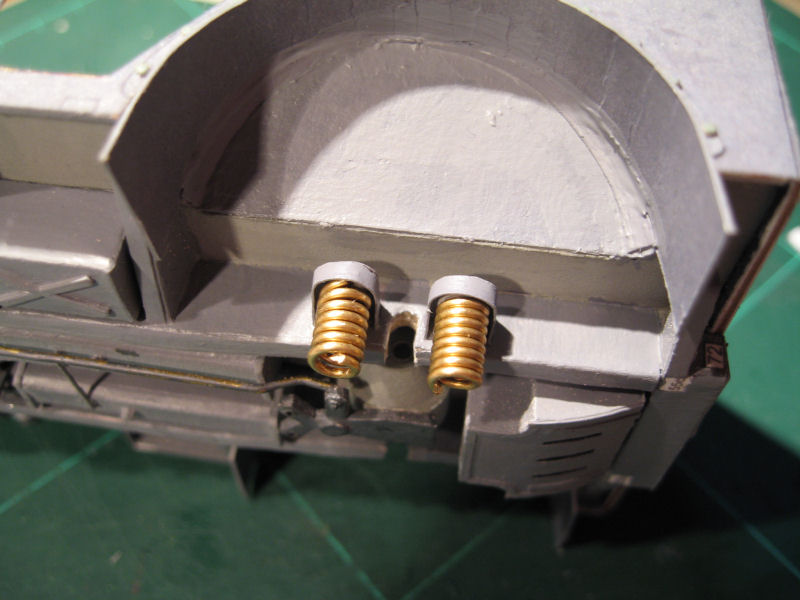

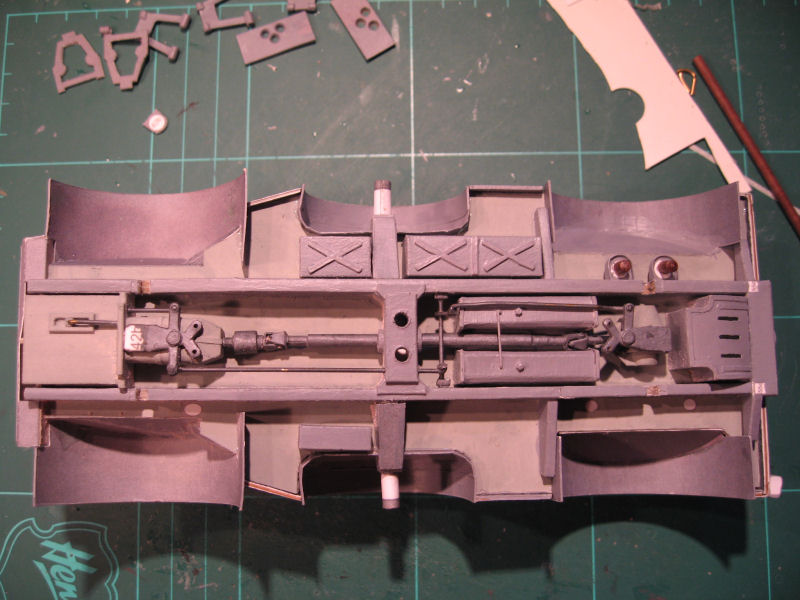

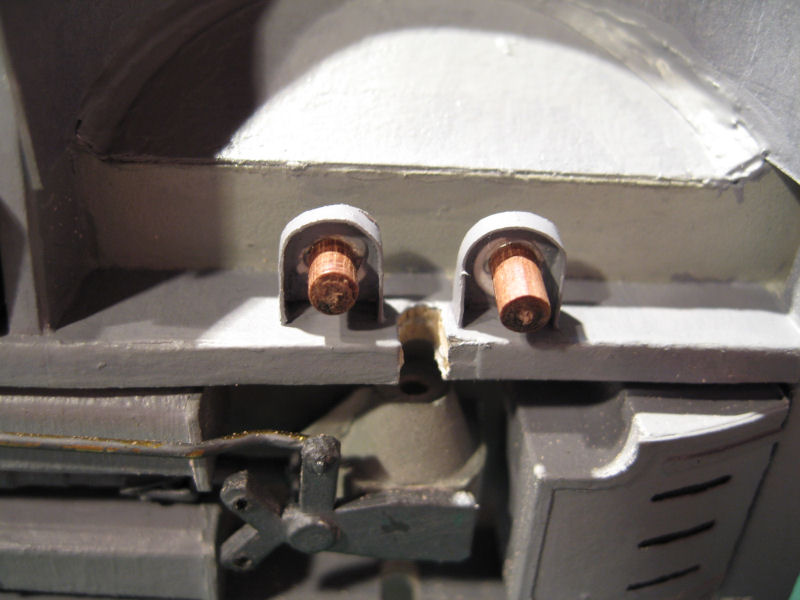

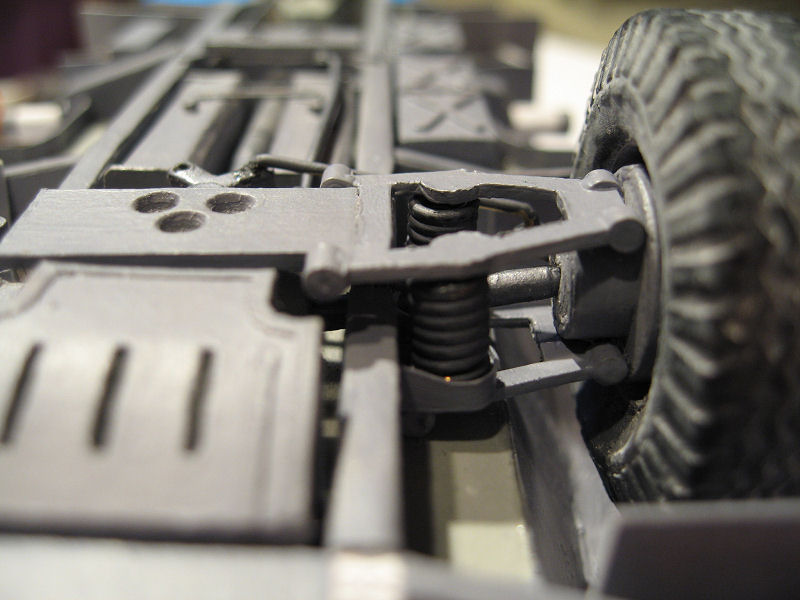

The drawing of the suspension An overview over the underside with two of the supporters for the springs in place The original springs was made of paper, and I didn't think it looked good enough, so I made some springs of 1mm copperwire.To be sure the springs are placed correct and will stay there I had to make a centersupporter for tthem of some 3mm roundstick. The springs in place
Horch Horch Horch Horch

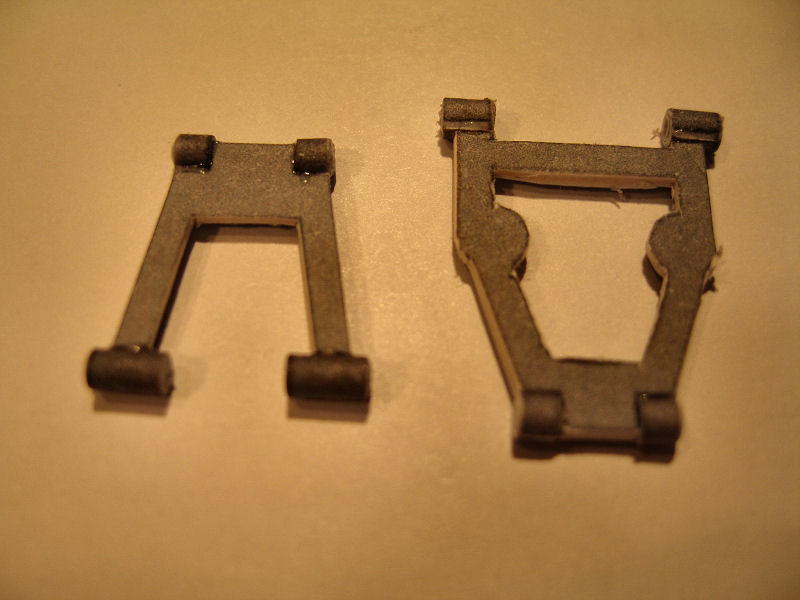

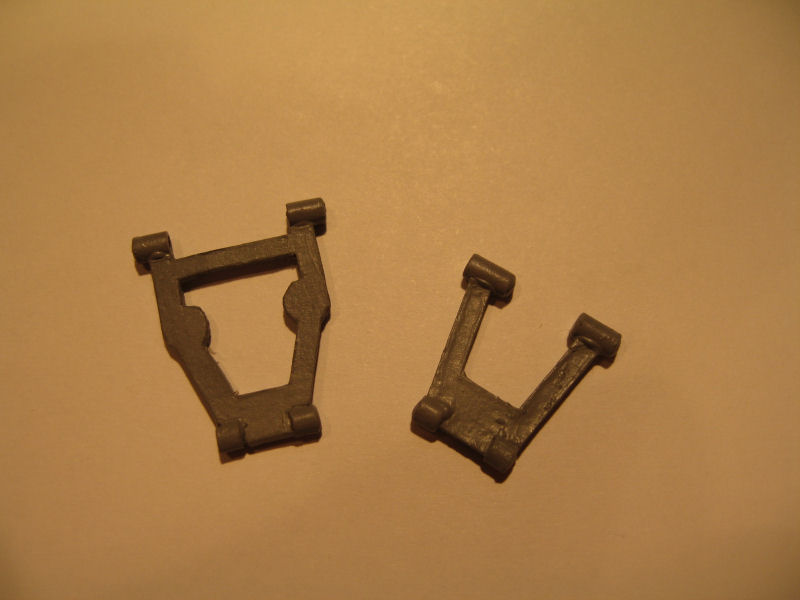

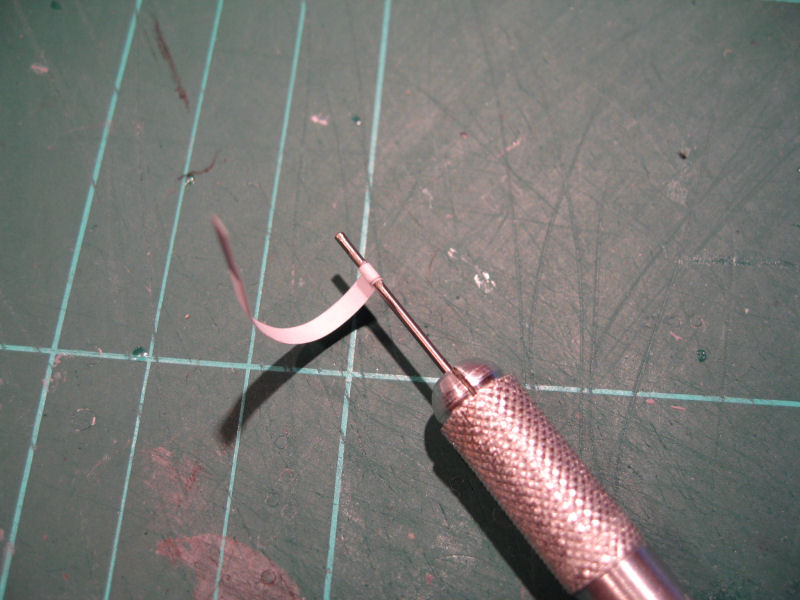

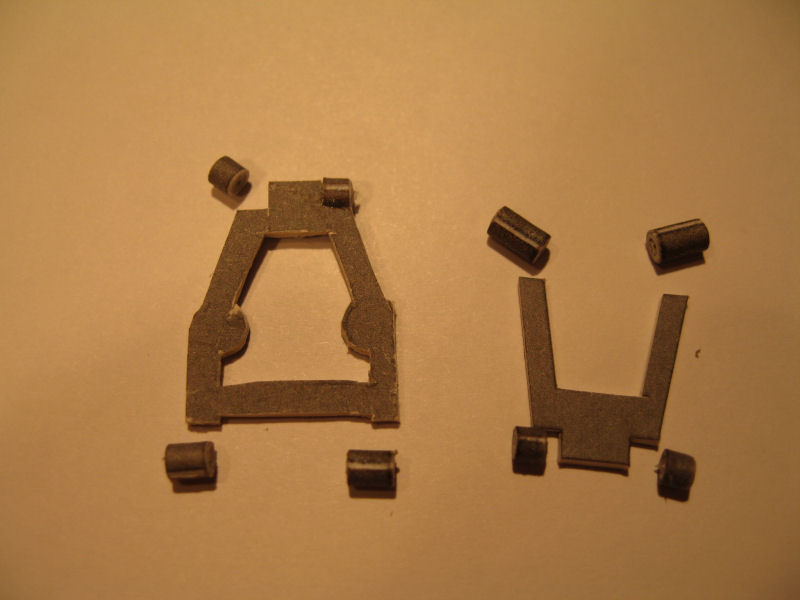

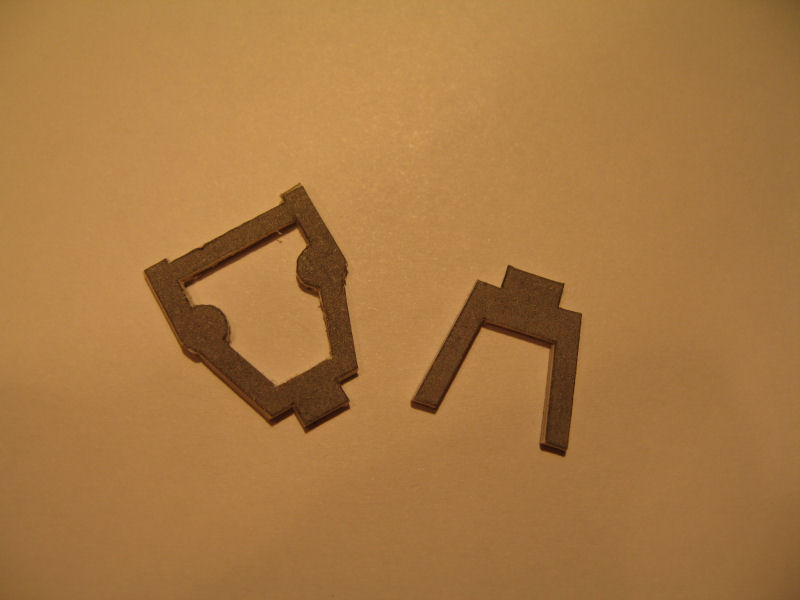

First I cutted out the parts from 0,5mm karton 4 small rolled tubes was to be made for each arm....that makes 8 rolls for each wheel, and 32 stk totally....I used a 1mm drill to roll against. Here I have made the rolls for the two arms. The small rolls placed on the part
Horch Horch Horch Horch

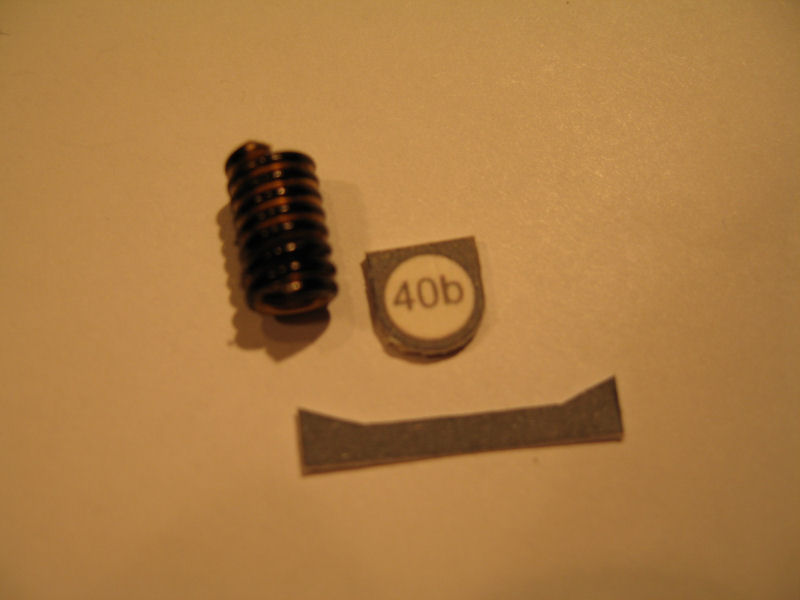

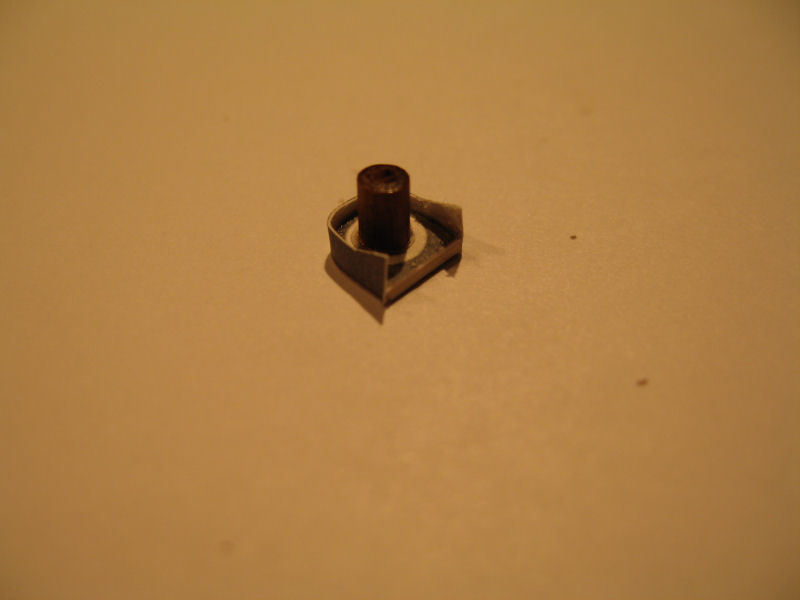

parts painted and ready Parts for the spring supporter. I added a wooden rod to center the spring. Spring in place

Finishing the rear suspension,steering and the arms.

Horch Horch Horch Horch

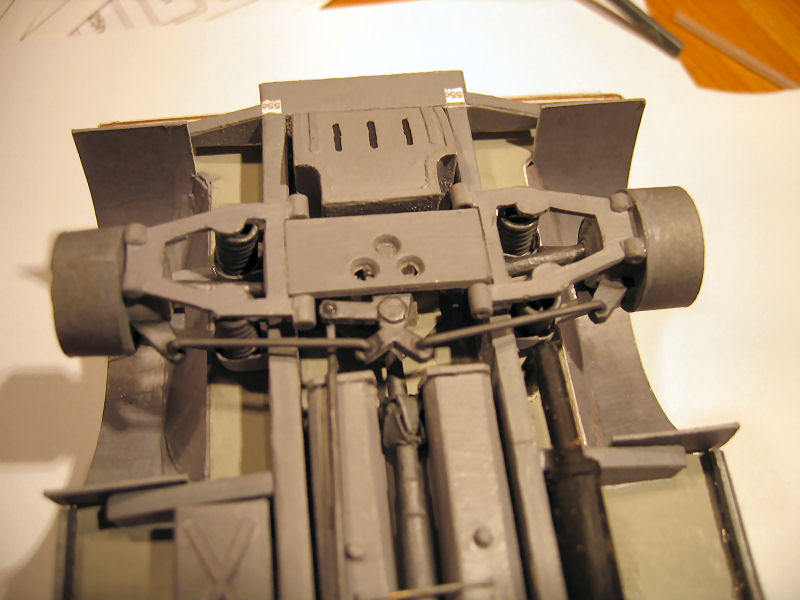

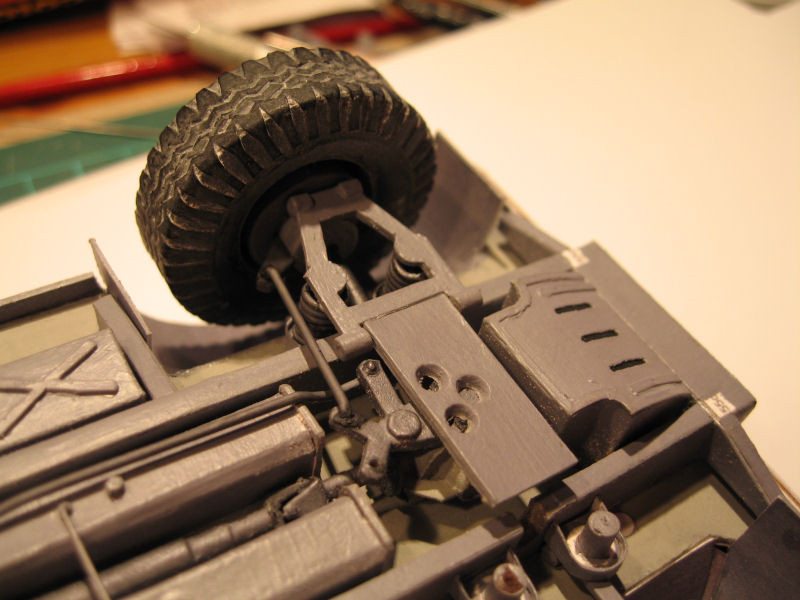

A closer look at the steering and suspension Top down view The wheel placed where it belongs Closeup
Horch Horch Horch Horch

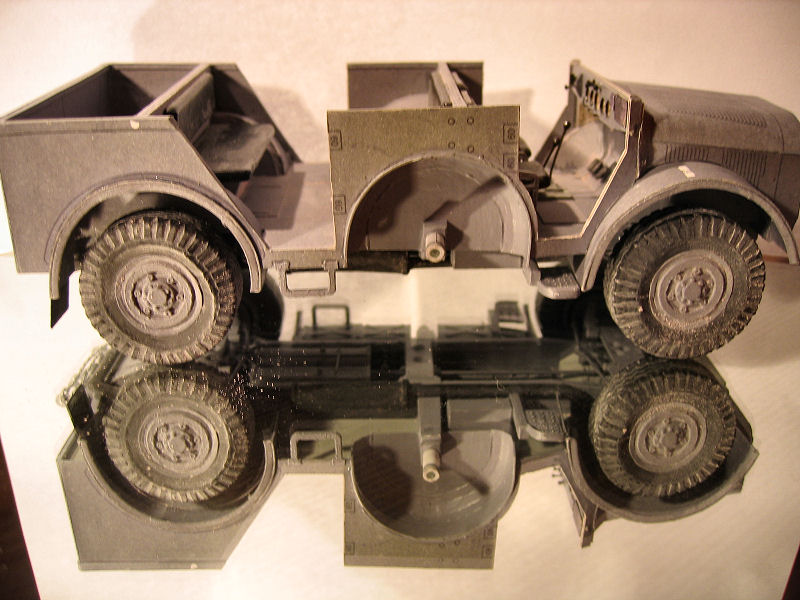

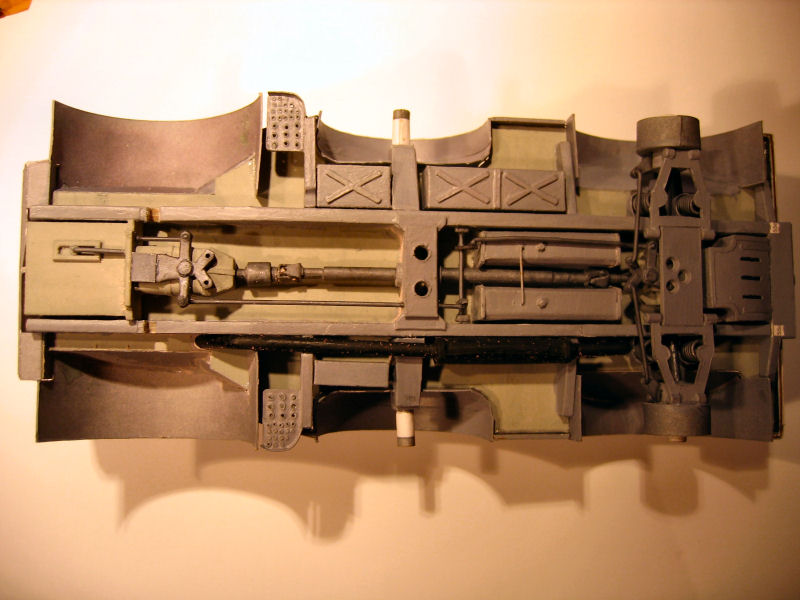

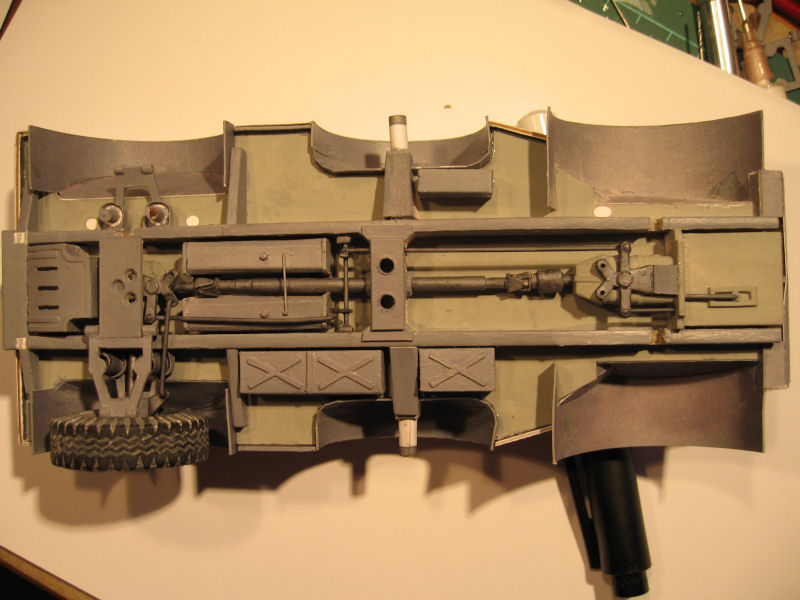

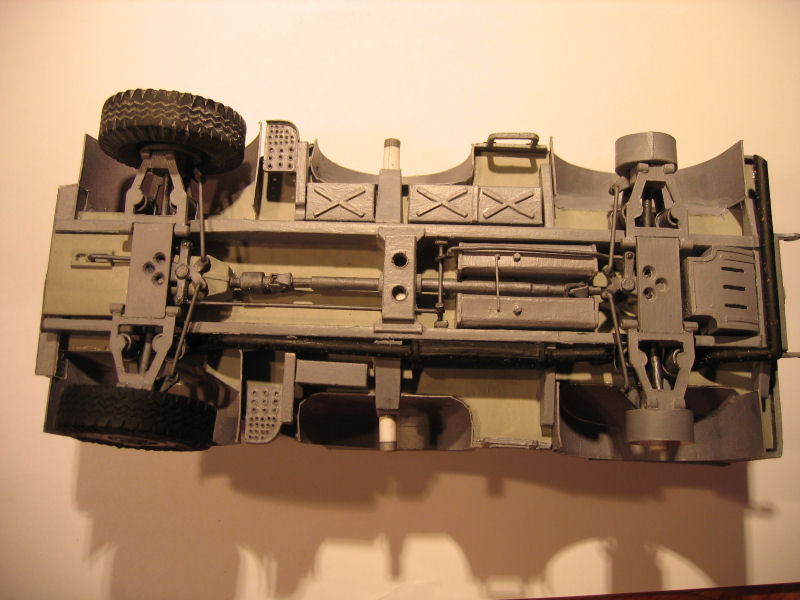

Overview Both sides done Overview Both front and rear suspension and steering done

Finishing some details.

Horch Horch Horch Horch

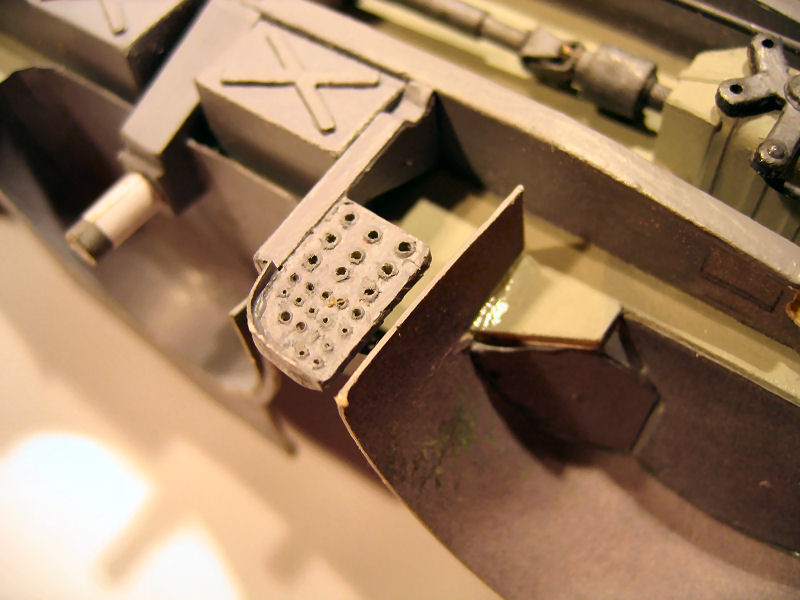

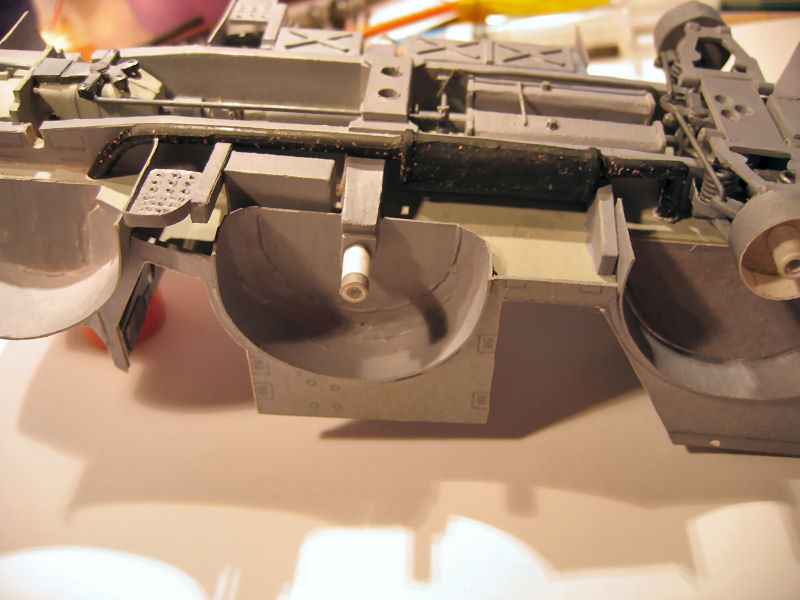

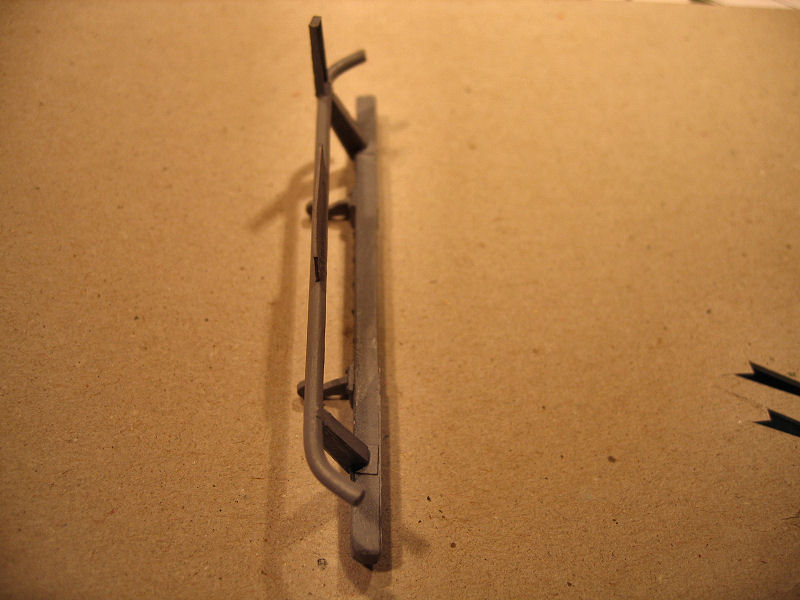

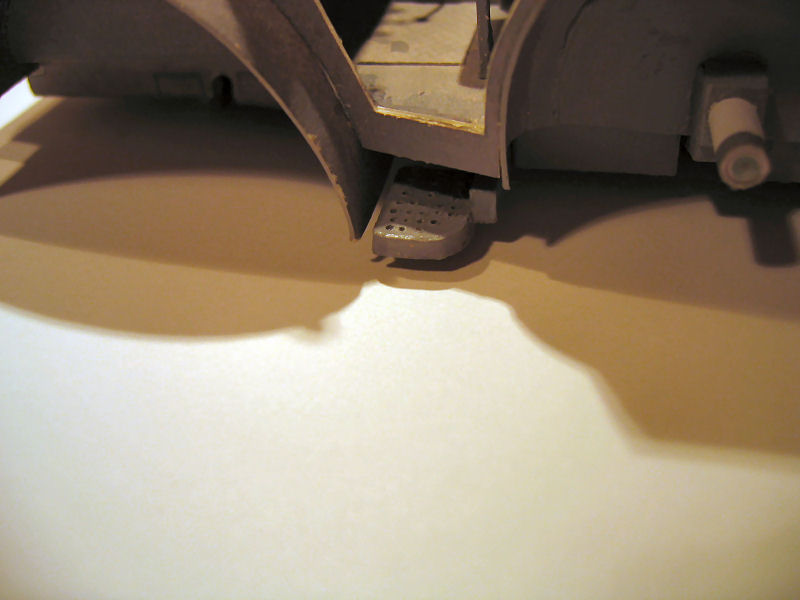

Step Exhaust Closeup of the exhaust tank Closeup of the step

Final stages.

Horch Horch Horch Horch

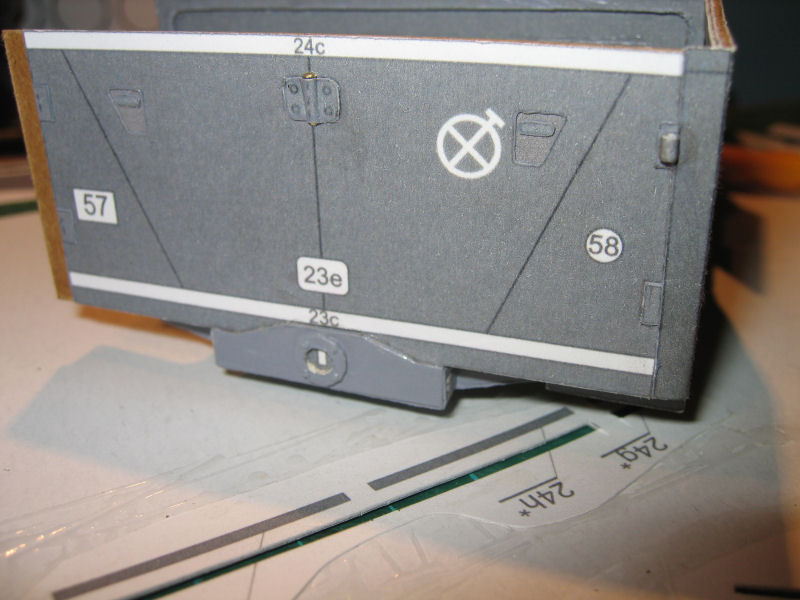

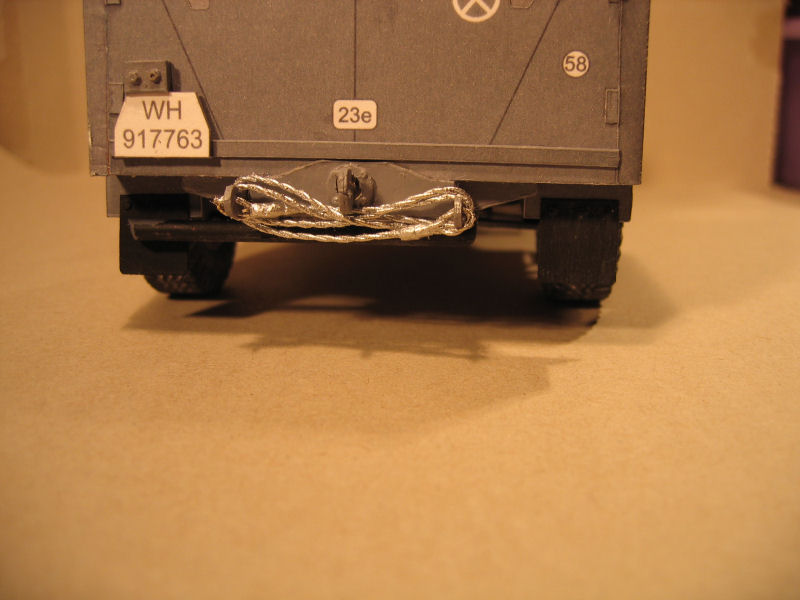

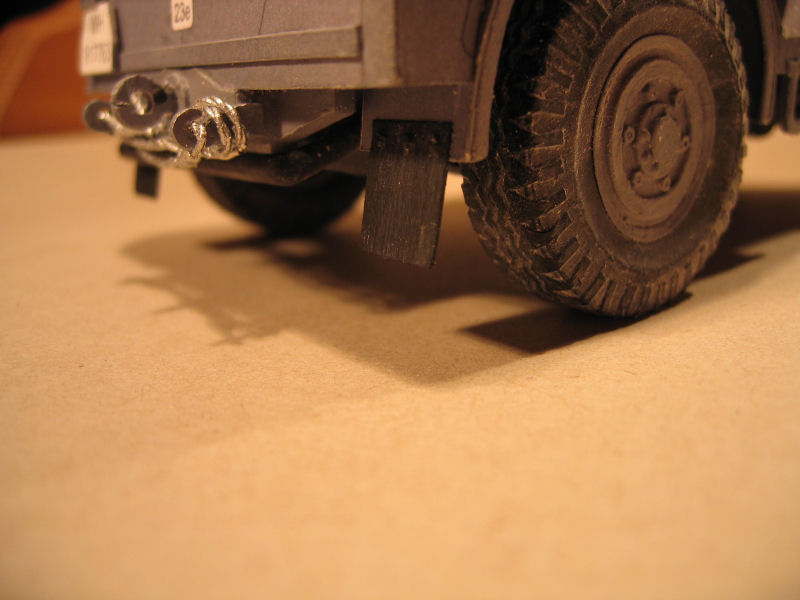

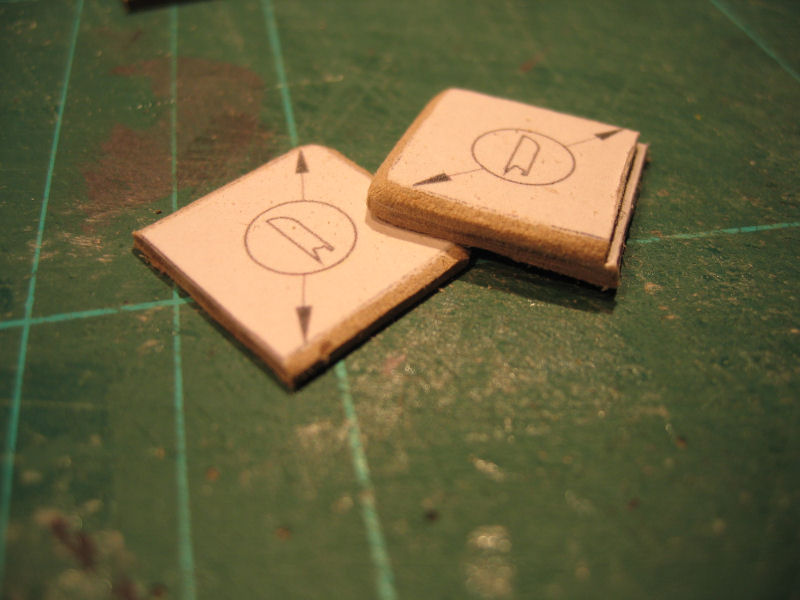

Adding the wheels Now the car stands on it's own wheels! One of the towing wires and the hooks are in place, also the licenceplate The rear splashguards
Horch Horch Horch Horch

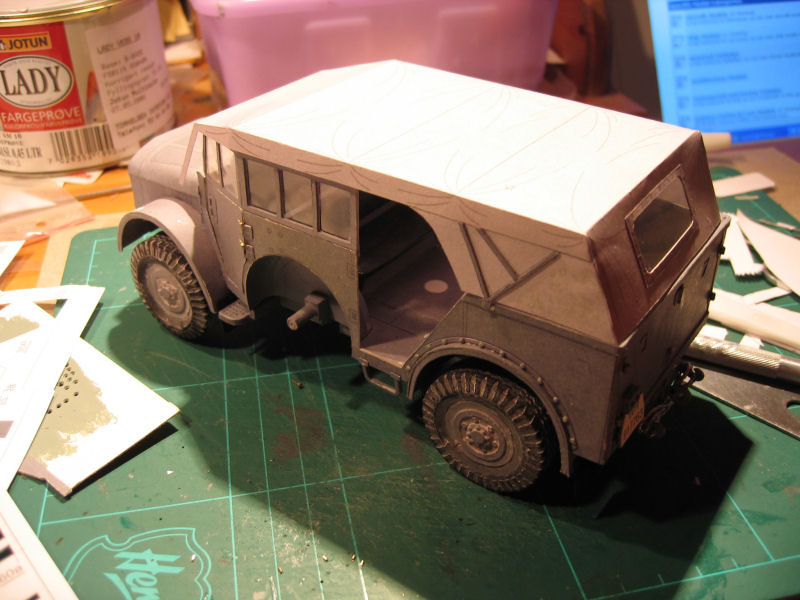

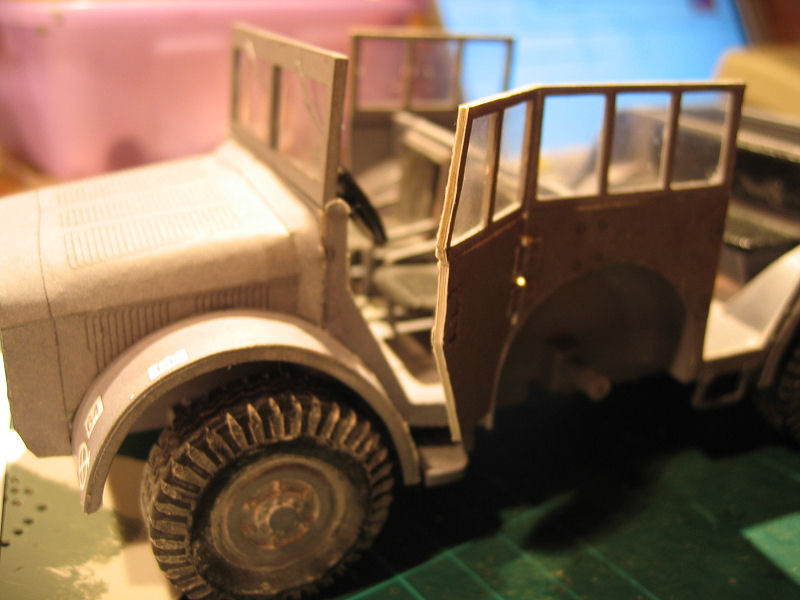

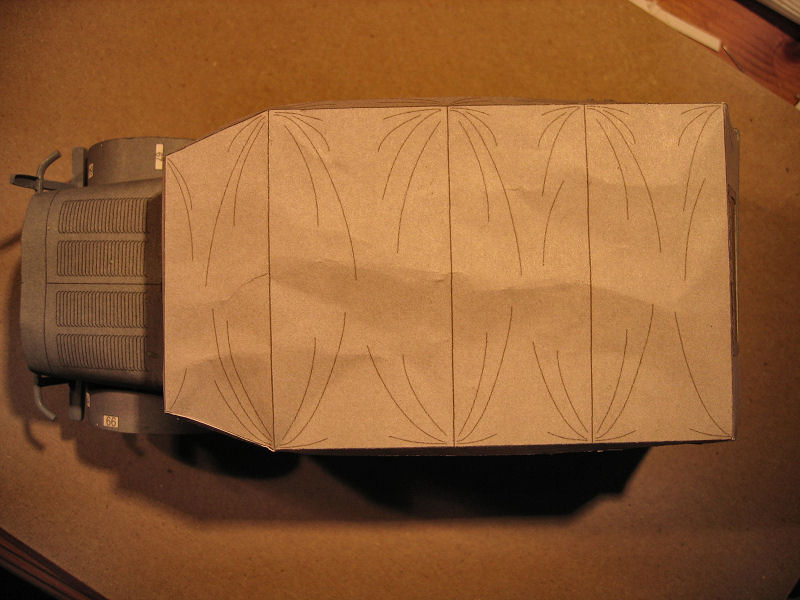

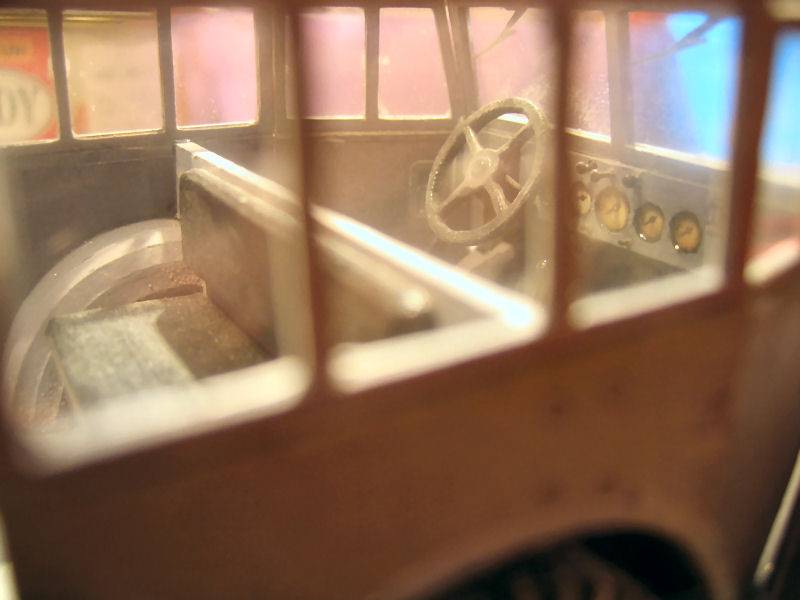

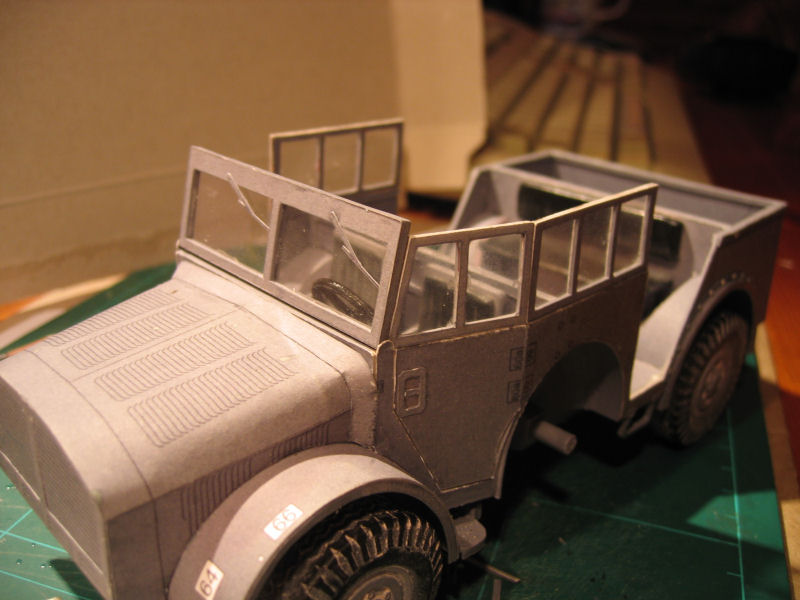

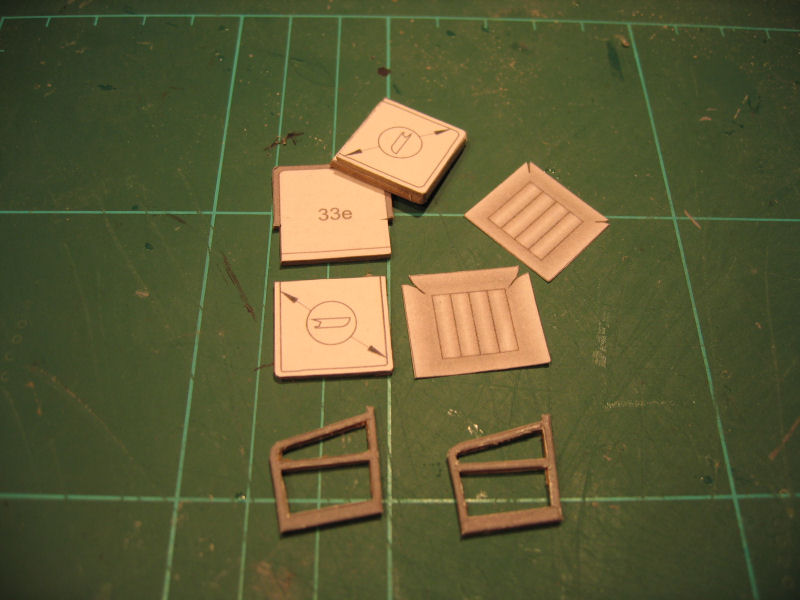

Mirror mirror.... Adding doors and windows The roof is adjusted to fit Inside
Horch Horch Horch Horch

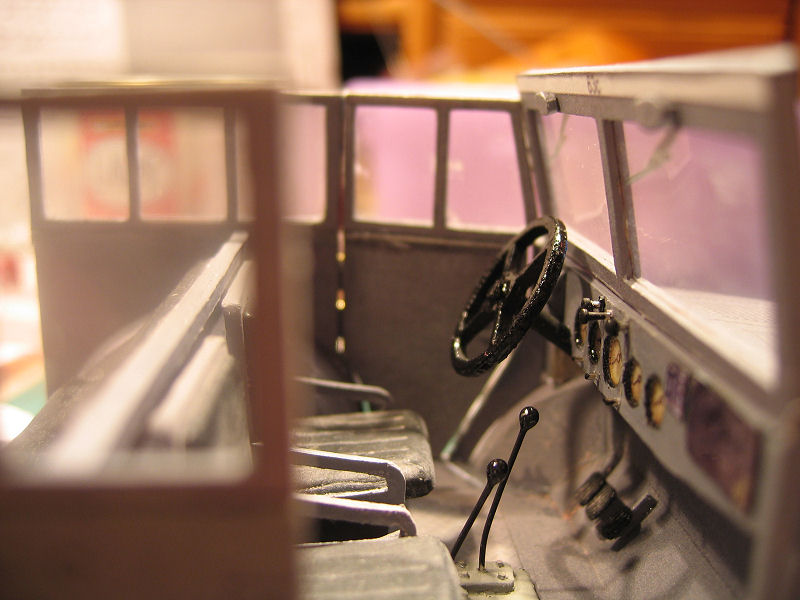

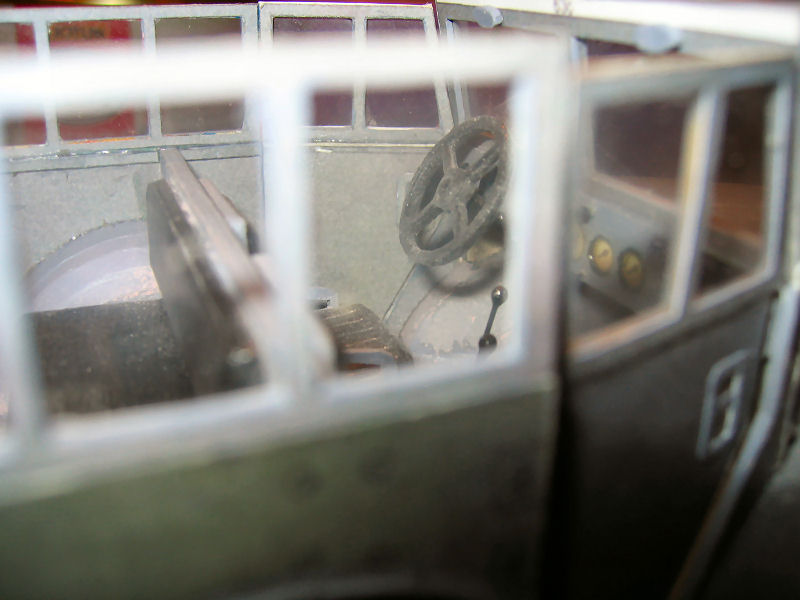

Inside Doors can be opened Looking in Closer look

Front bumper

Horch Horch Horch Horch

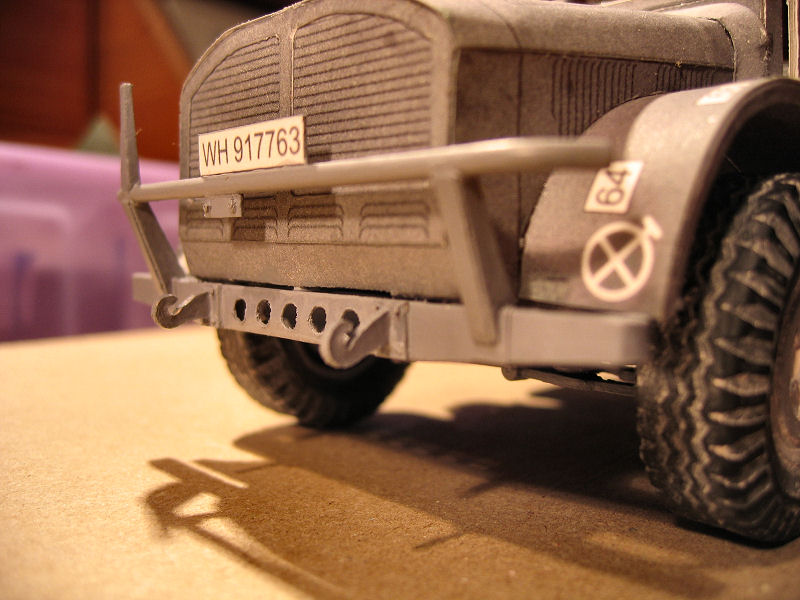

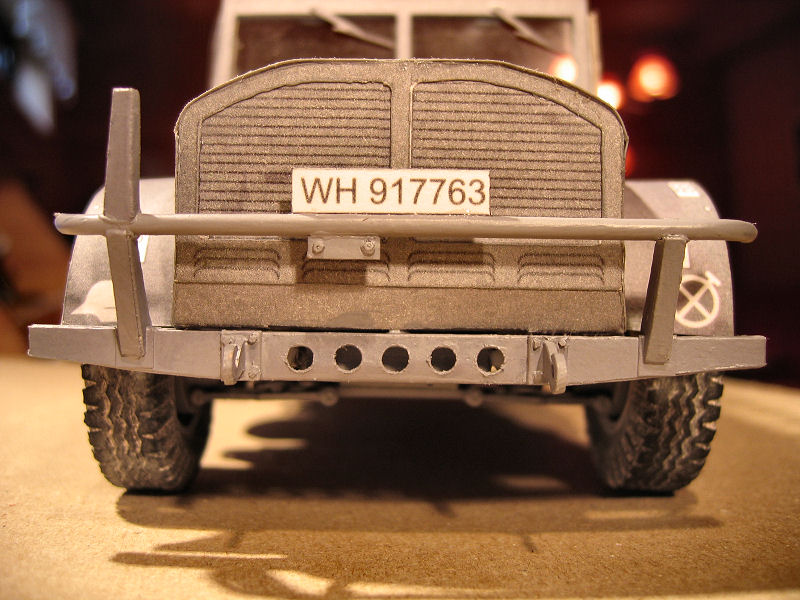

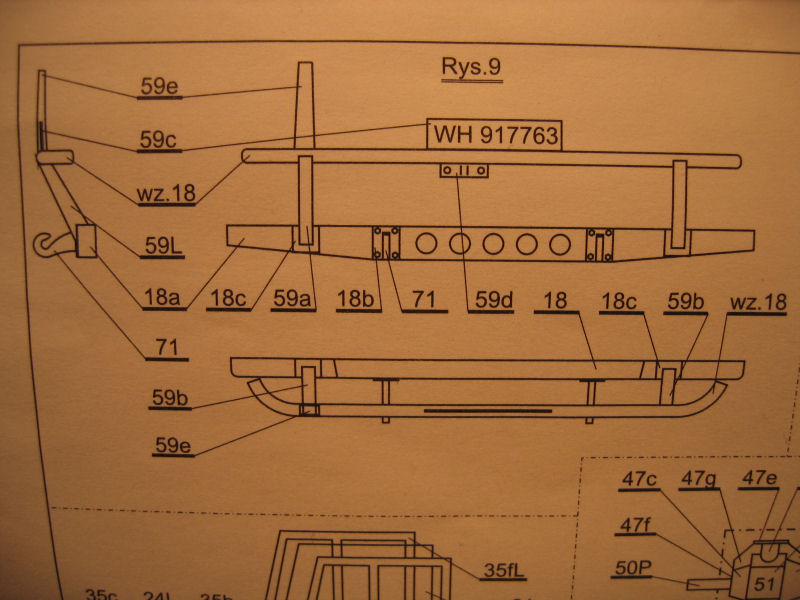

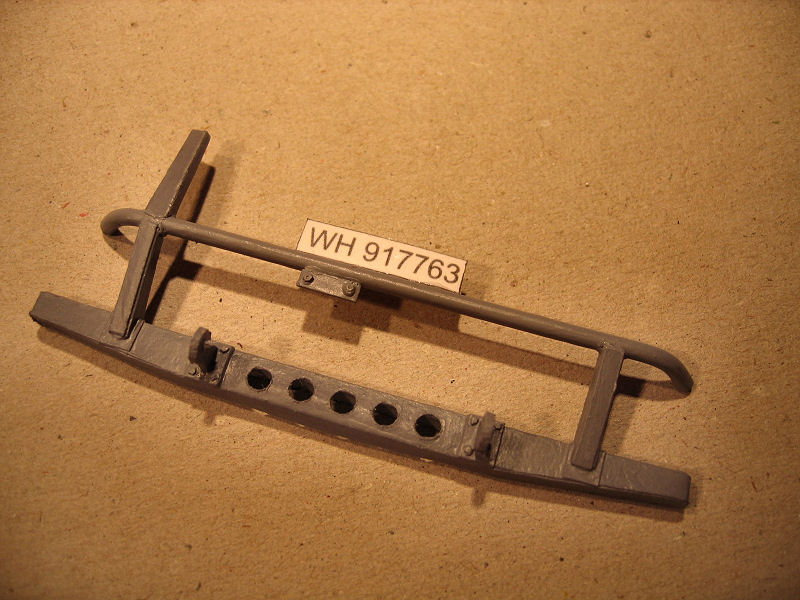

Drawing Done Another view Another view

Finished

Horch Horch Horch Horch

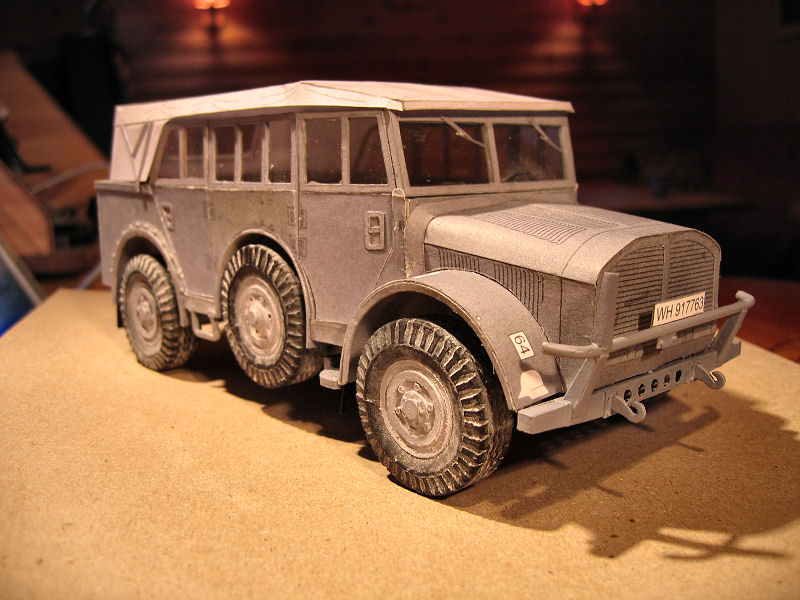

The car is now done!! This was a fun build,with not many surprises along the way.A few errors in the kit,but nothing that can't be fixed.
